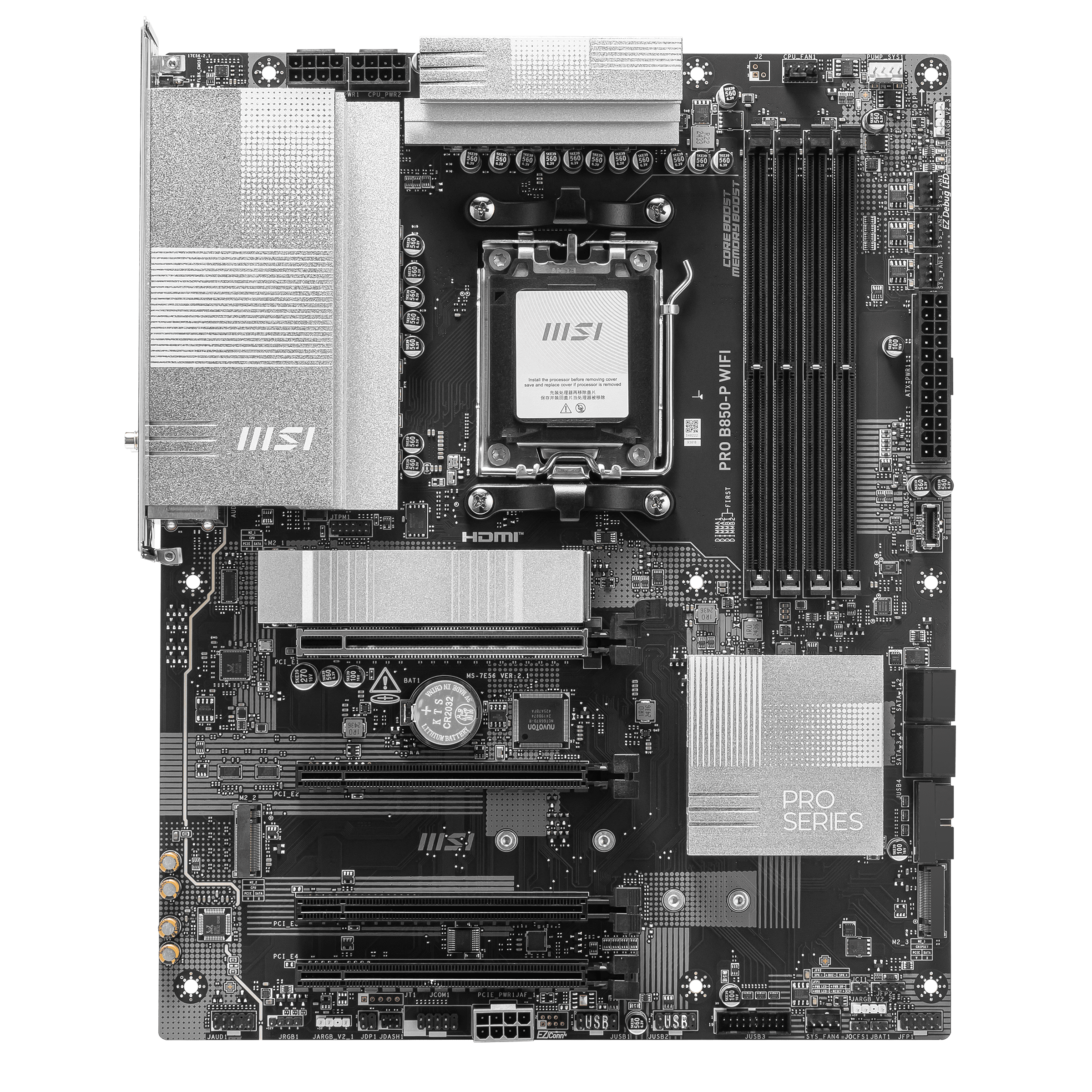

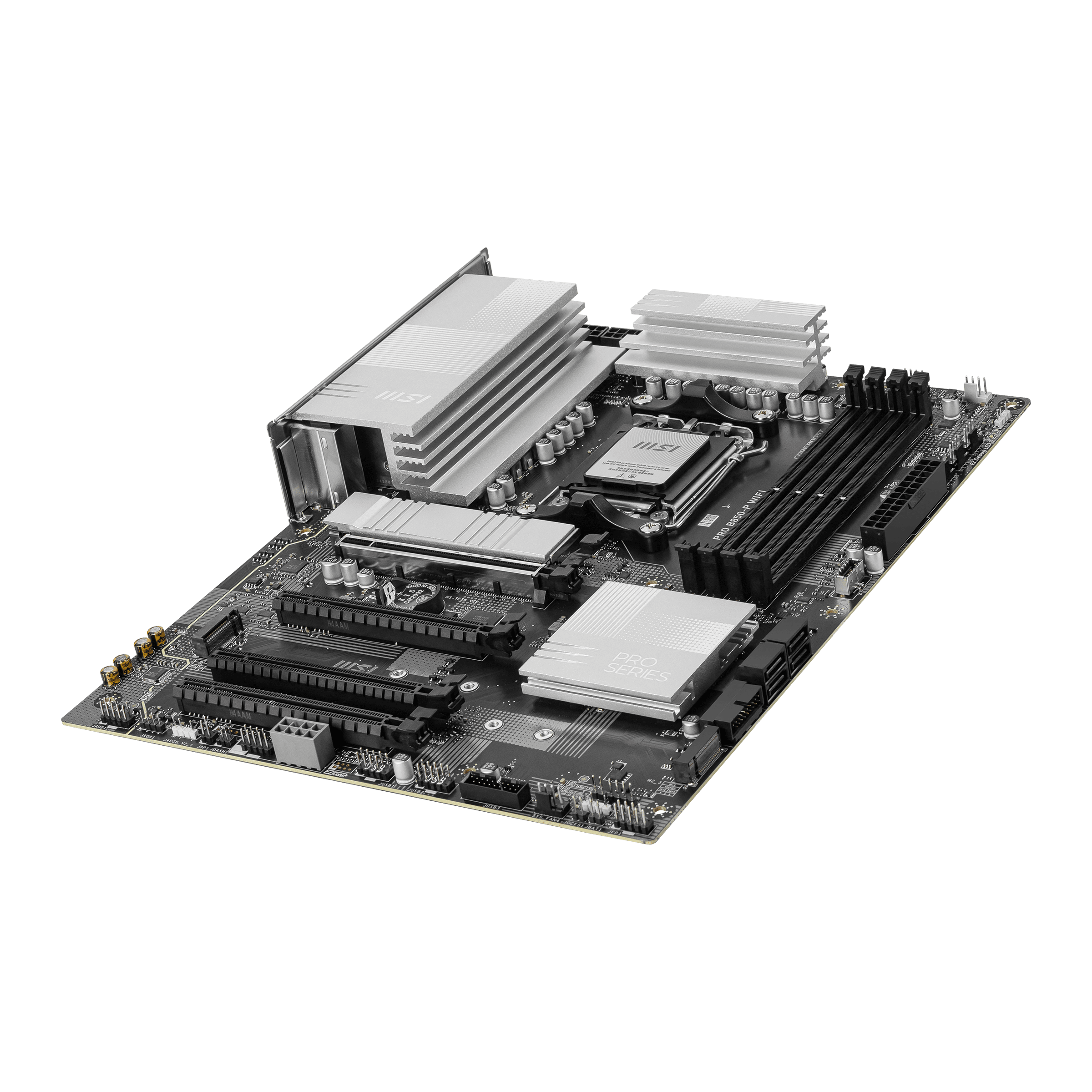

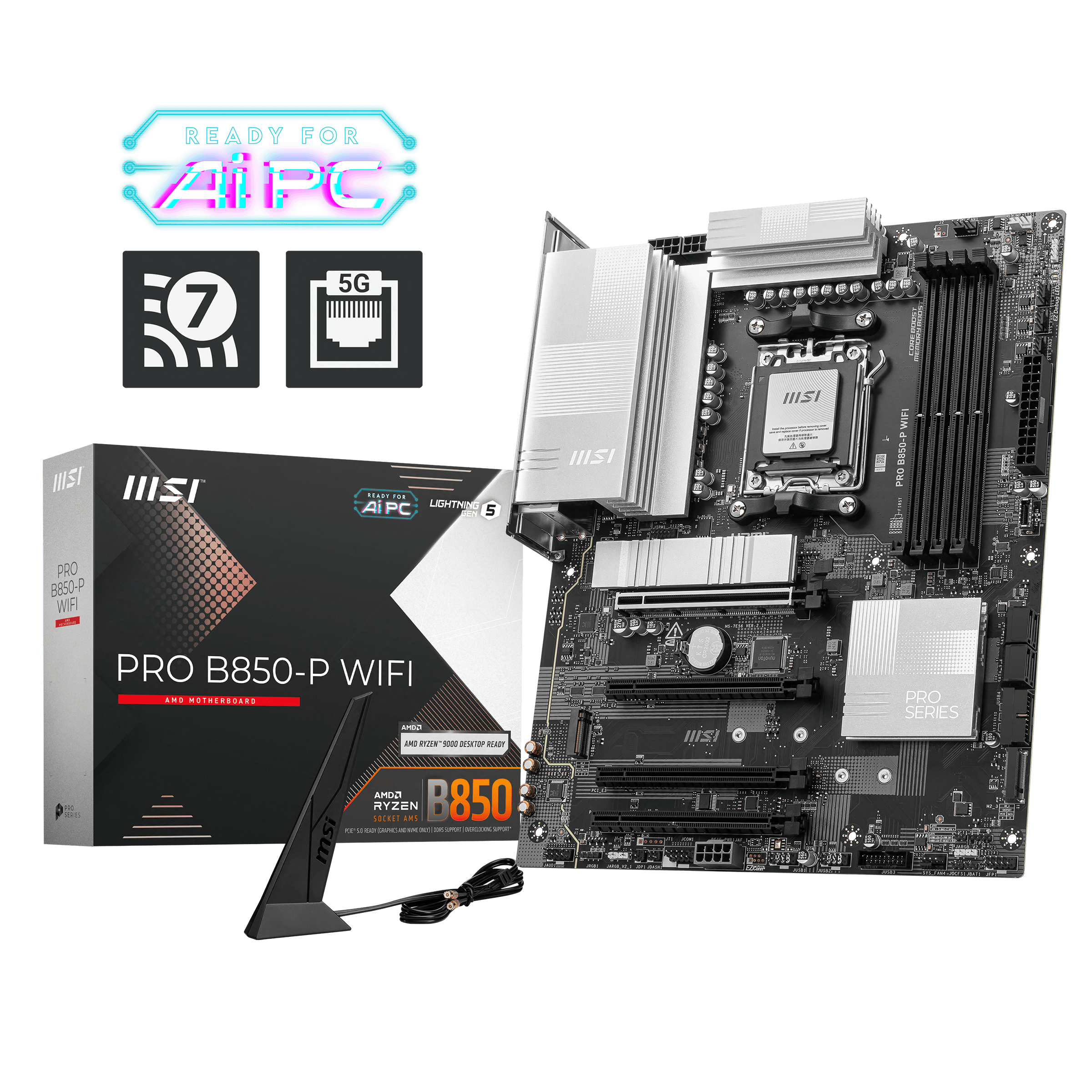

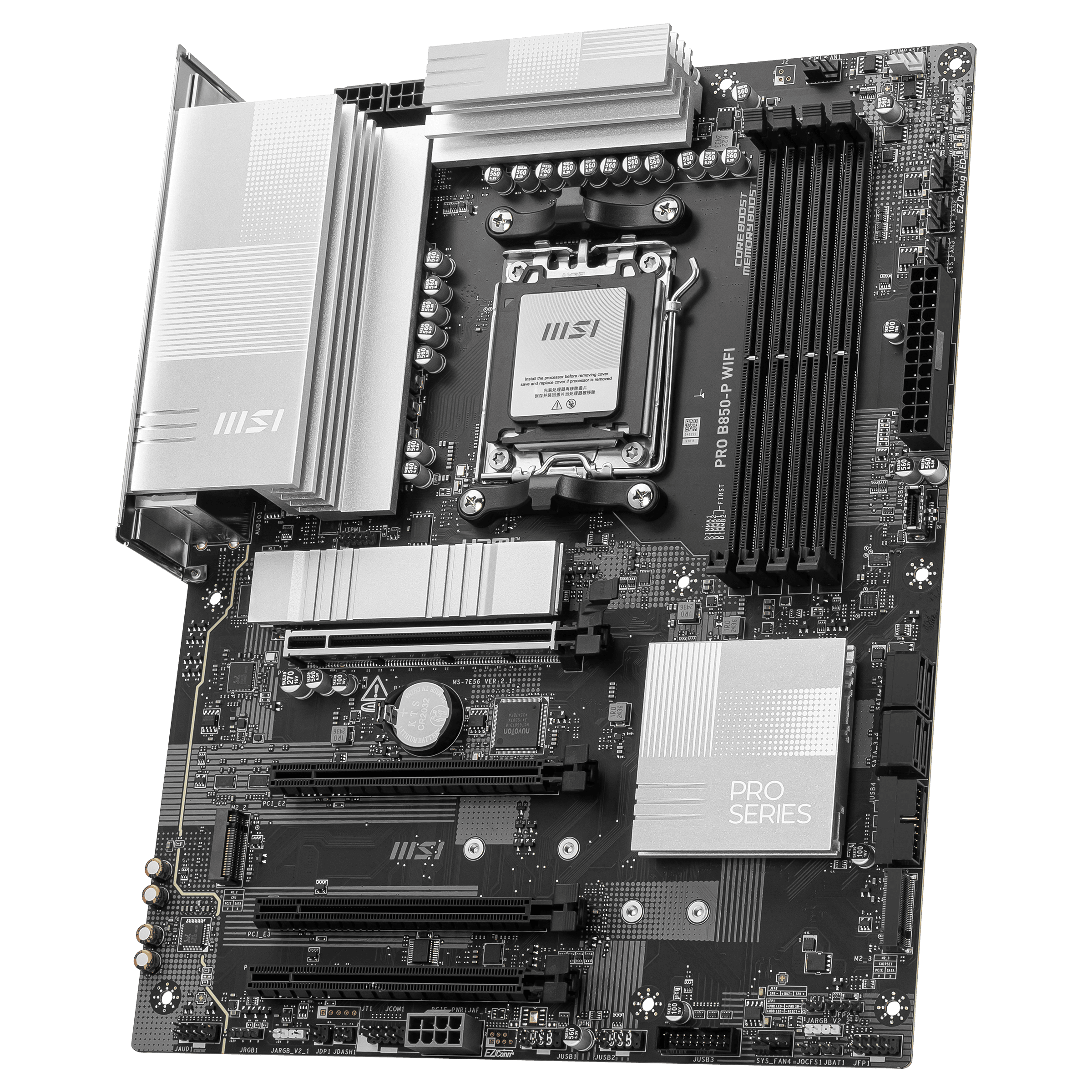

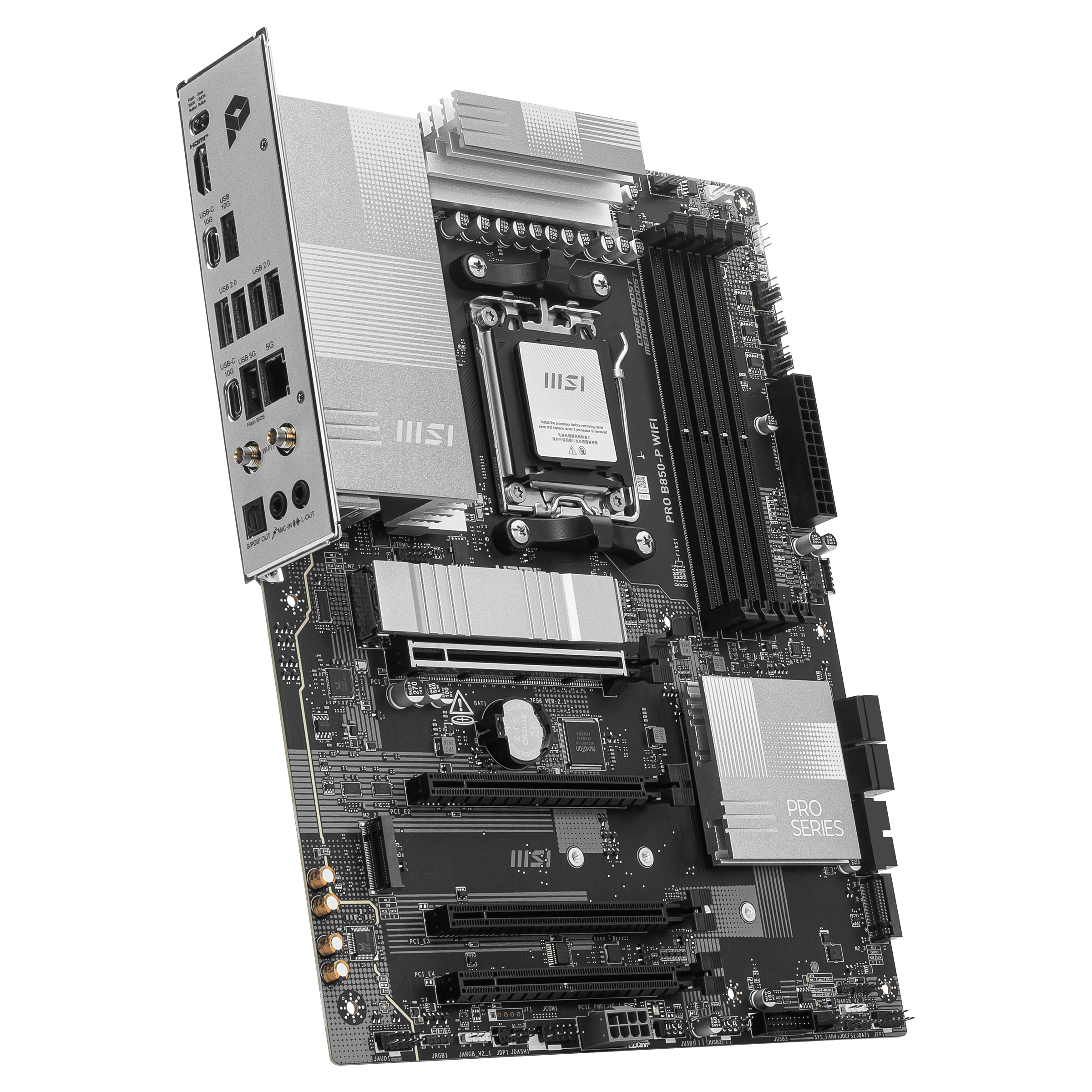

MSI PRO B850-P WIFI AM5 ATX Motherboard

Export Specification - Copy And Paste Into Your Post

$199.50

Specification

Brand

MSI

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

AMD B850

CPU Socket

Socket AM5

Form Factor

ATX

Memory

4 x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s [Supports AMD POR Speed and JEDEC Speed, Memory Overclocking and AMD EXPO™, Dual-Channel mode, Non-ECC and Un-buffered memory, CUDIMM (Clock Driver bypass mode only]

LAN

Realtek® 8126VB 5G LAN

Wireless LAN

Wi-Fi 7 Solution [Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps / Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Bluetooth

Supports Bluetooth® 5.4, MLO, 4KQAM

Audio

Realtek® ALC897 (7.1-Channel High Definition Audio)

Storage

1 x M.2 Gen5 x4 128Gbps slot, 1 x M.2 Gen4 x4 64Gbps slot, 1 x M.2 Gen4 x2 32Gbps slot, 4 x SATA 6Gbps ports

Onboard Graphics

1 x HDMI™ (Support HDMITM 2.1, maximum resolution of 4K 60Hz), USB4® port (Support DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 60Hz)

Raid

Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

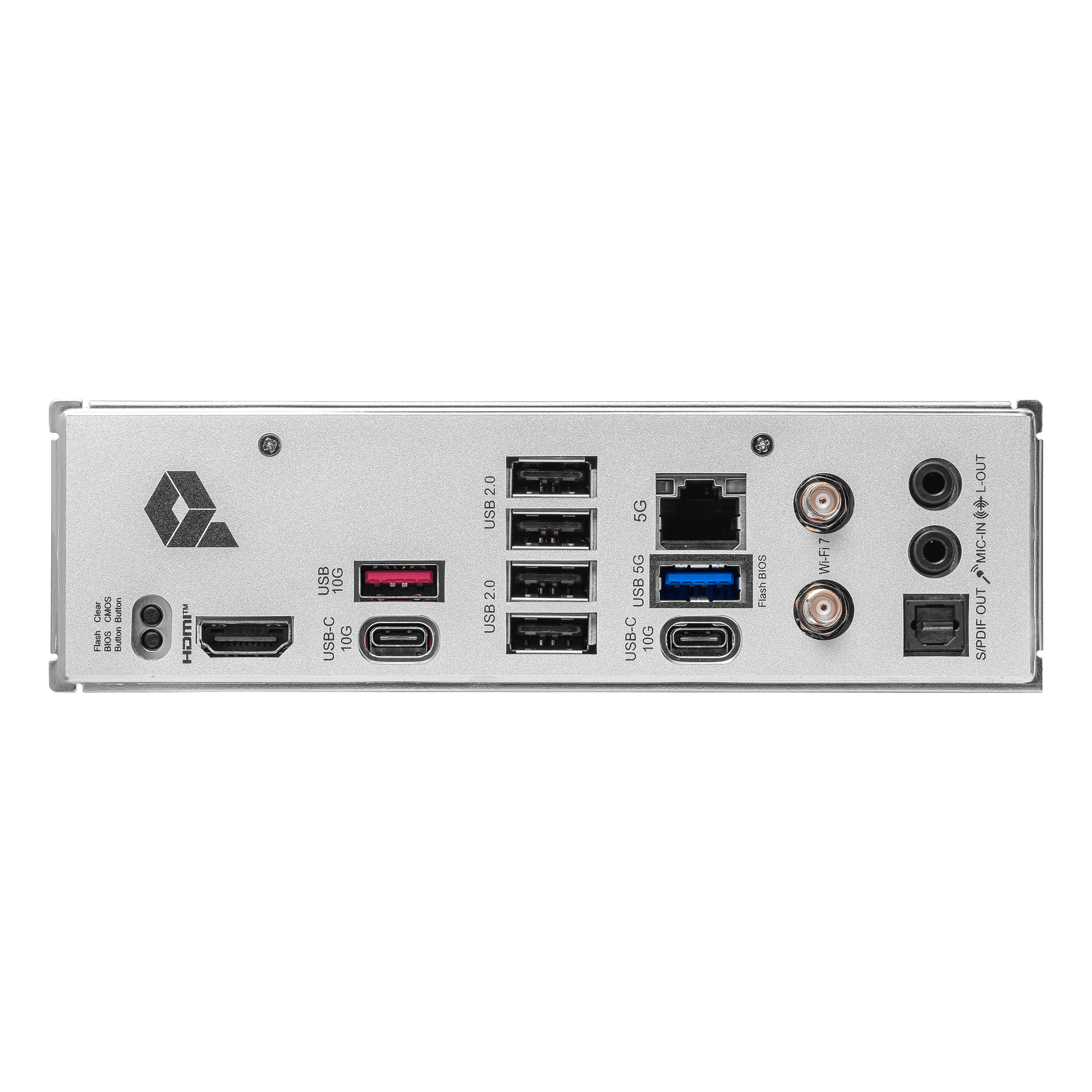

I/O (Rear)

Clear CMOS Button, USB 10Gbps Type-A, USB 2.0, 5G LAN, Wi-Fi / Bluetooth, Audio connectors, Flash BIOS Button, HDMI™, USB 10Gbps Type-C, USB 5Gbps Type-A, USB 10Gbps Type-C, S/PDIF OUT

Expansion Slots

1 x PCIe 5.0 x16 slot, 1 x PCIe 4.0 x16 slot, 2 x PCIe 3.0 x1 slots

USB (Front)

4 x USB 5Gbps Type A, 1 x USB 5Gbps Type C, 4 x USB 2.0

USB (Rear)

1 x USB 10Gbps Type A, 2 x USB 10Gbps Type C, 1 x USB 5Gbps Type A, 4 x USB 2.0

Type-C Port

1 x USB 5Gbps Type C (Front), 2 x USB 10Gbps Type C (Rear)

Internal Connectors

1 x Power Connector(ATX_PWR), 2 x Power Connector(CPU_PWR), 1 x Power Connector(PCIE_PWR 8pin), 1 x CPU Fan, 1 x Combo Fan (Pump_Sys Fan), 4 x System Fan, 2 x Front Panel (JFP), 1 x Chassis Intrusion (JCI), 1 x Front Audio (JAUD), 1 x Com Port (JCOM), 1 x Tuning Controller connector(JDASH), 3 x Addressable V2 RGB LED connector (JARGB_V2), 1 x RGB LED connector(JRGB),1 x TPM pin header(Support TPM 2.0), 4 x USB 2.0 ports, 4 x USB 5Gbps Type A ports, 1 x USB 5Gbps Type C ports

Warranty

Refer to Manufacturer's Warranty

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
High Quality PCB: 6-layer PCB made by 2oz thickened copper
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
