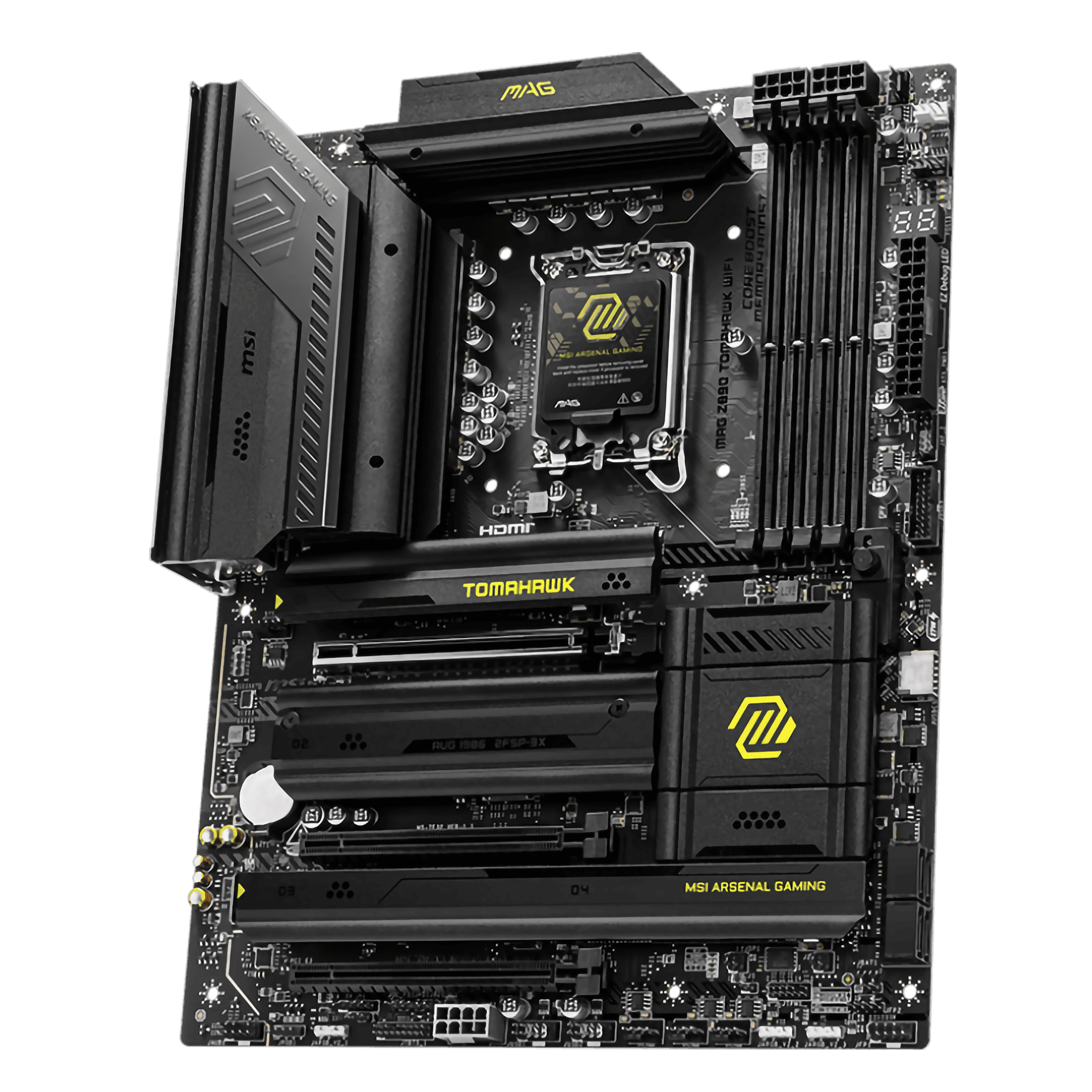

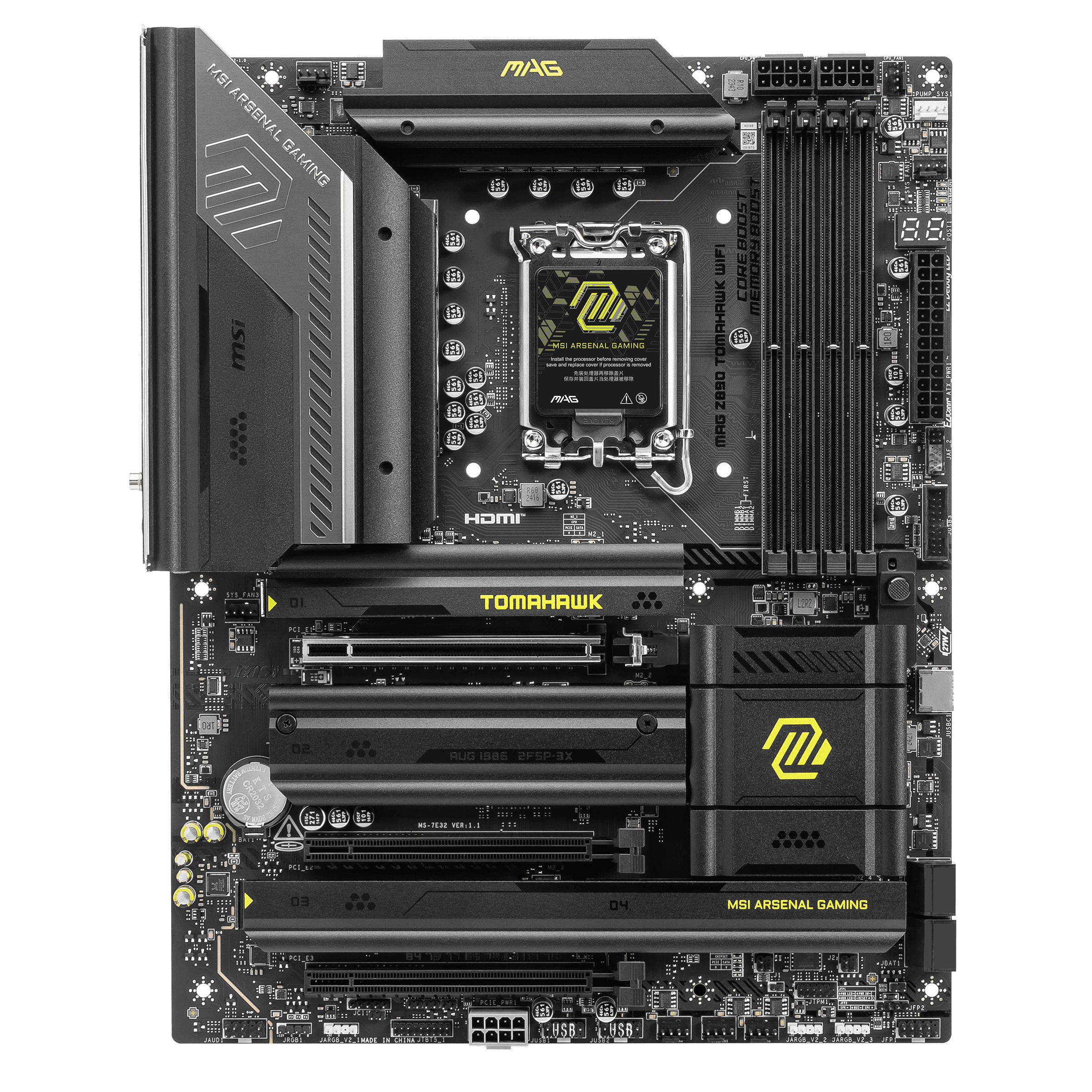

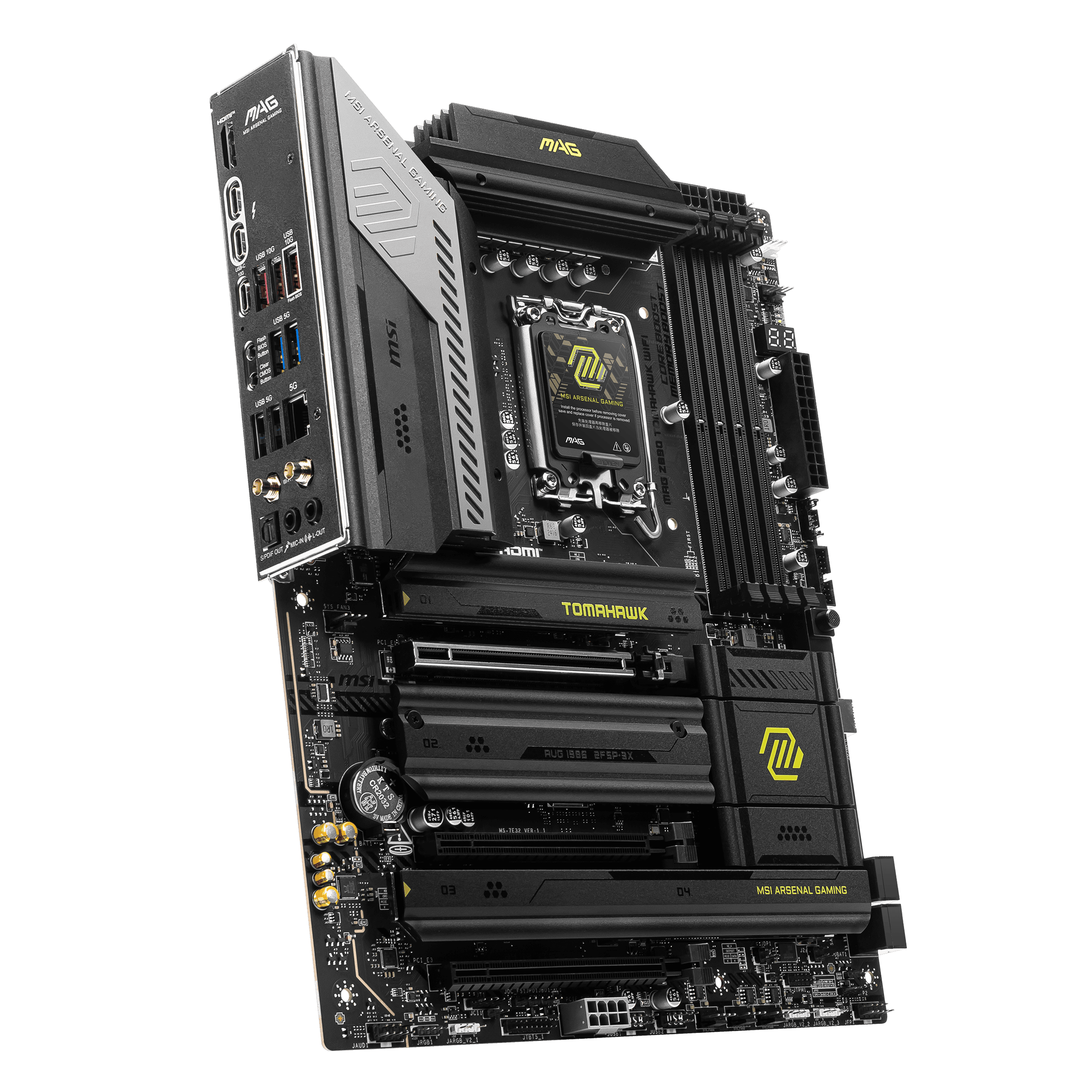

MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Gaming Motherboard
MSI MAG Z890 TOMAHAWK WIFI LGA 1851 ATX Gaming Motherboard
$259.99
Specification
Brand
MSI
CPU
Supports Intel® Core™ Ultra Processors (Series 2)
Chipset
INTEL Z890
CPU Socket
LGA 1851
Form Factor
ATX
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s (Max. overclocking frequency: 1DPC 1R Max speed up to 9200+ MT/s, 1DPC 2R Max speed up to 7200+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 5600+ MT/s) [Supports Intel® POR Speed and JEDEC Speed, Supports Memory Overclocking and Intel® XMP 3.0, Supports Dual-Controller Dual-Channel mode, Supports Non-ECC, Un-buffered memory, Supports CUDIMM]
LAN
Intel® Killer™ E5000 5Gbps LAN
Wireless LAN
Intel® Killer™ BE1750x Wi-Fi 7 [Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps / Supports 802.11 a/ b/ g/ n/ ac/ ax/ be] The Wireless module is pre-installed in the M.2 (Key-E) slot
Bluetooth
Supports Bluetooth® 5.4**, MLO, 4KQAM / * 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. / ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
Audio
Realtek® ALC1220P Codec (7.1-Channel High Definition Audio, Supports S/PDIF output)
Storage
4x M.2 [M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices, M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices, M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices], 4x SATA 6G
Onboard Graphics
1x HDMI (Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz*), 2x Type-C DisplayPort (Thunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz)
Raid
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

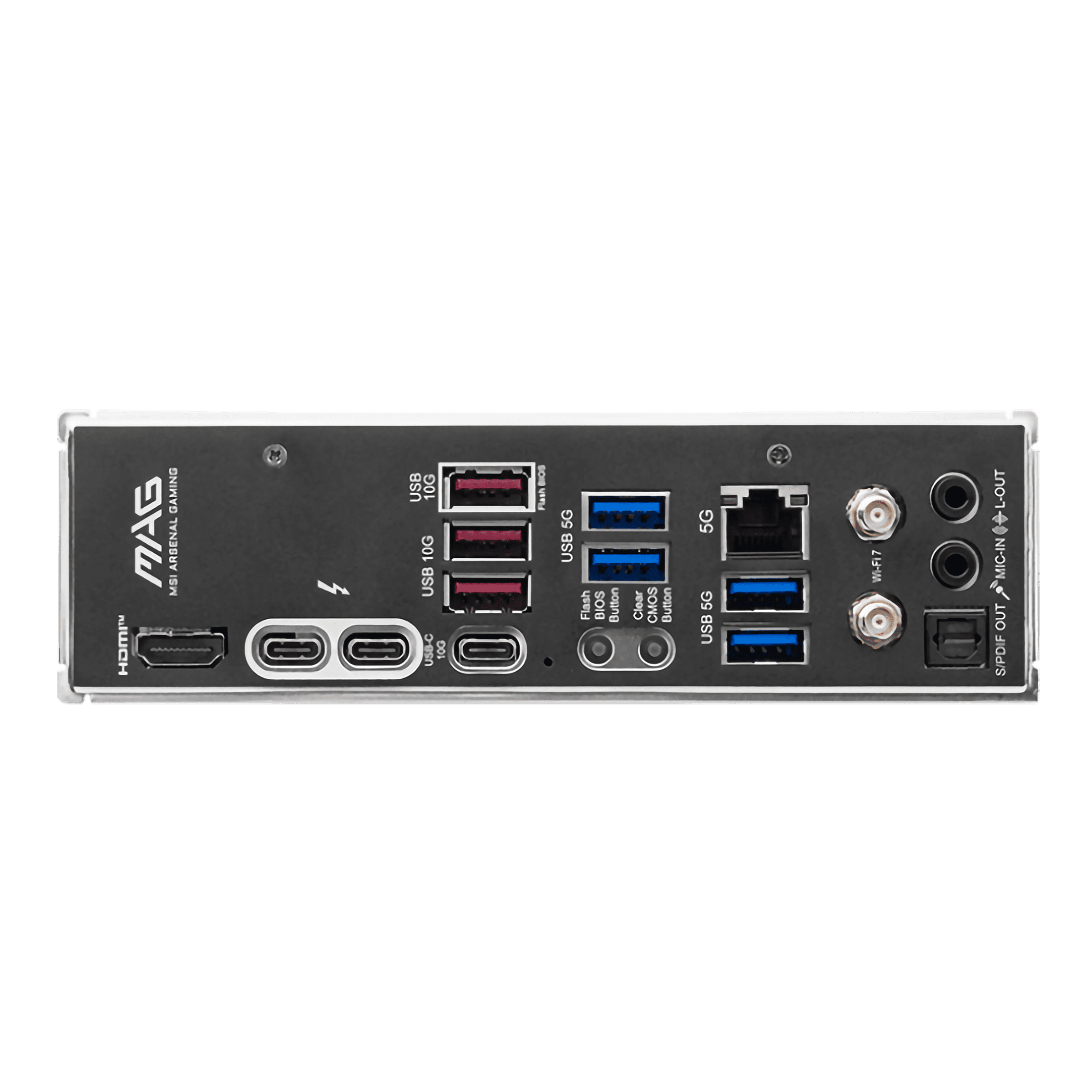

I/O (Rear)
USB 10Gbps Type-A, USB 5Gbps Type-A, 5G LAN, Wi-Fi / Bluetooth, Audio Connectors, HDMI™, Thunderbolt™ 4 40Gbps (Type-C), USB 10Gbps Type-C, Flash BIOS Button, Clear CMOS Button, USB 5Gbps Type-A, S/PDIF-OUT
Expansion Slots
3x PCI-E x16 slot, PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
USB (Front)
4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 20Gbps Type C
USB (Rear)
4x USB 5Gbps Type A, 3x USB 10Gbps Type A, 1x USB 10Gbps Type C
Internal Connectors
1x Thunderbolt5 card connector(JTBT5, support RTD3), 1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 6x System Fan, 1x EZ Conn-header (JAF_2), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 4x USB 2.0 ports, 2x USB 5Gbps Type A ports, 1x USB 20Gbps Type C ports
Dimensions
9.60 in. x 12.00 in.
UPC
824142382226
Warranty
Refer to Manufacturer's Warranty
Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
Supports DDR5 Memory, Dual Channel DDR5 9200+ MT/s (OC)
16+1+1+1 Duet Rail Power System
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: Thunderbolt™ 4 port, Intel® Killer™ 5G LAN & Intel® Killer™ Wi-Fi 7 Solution
EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
