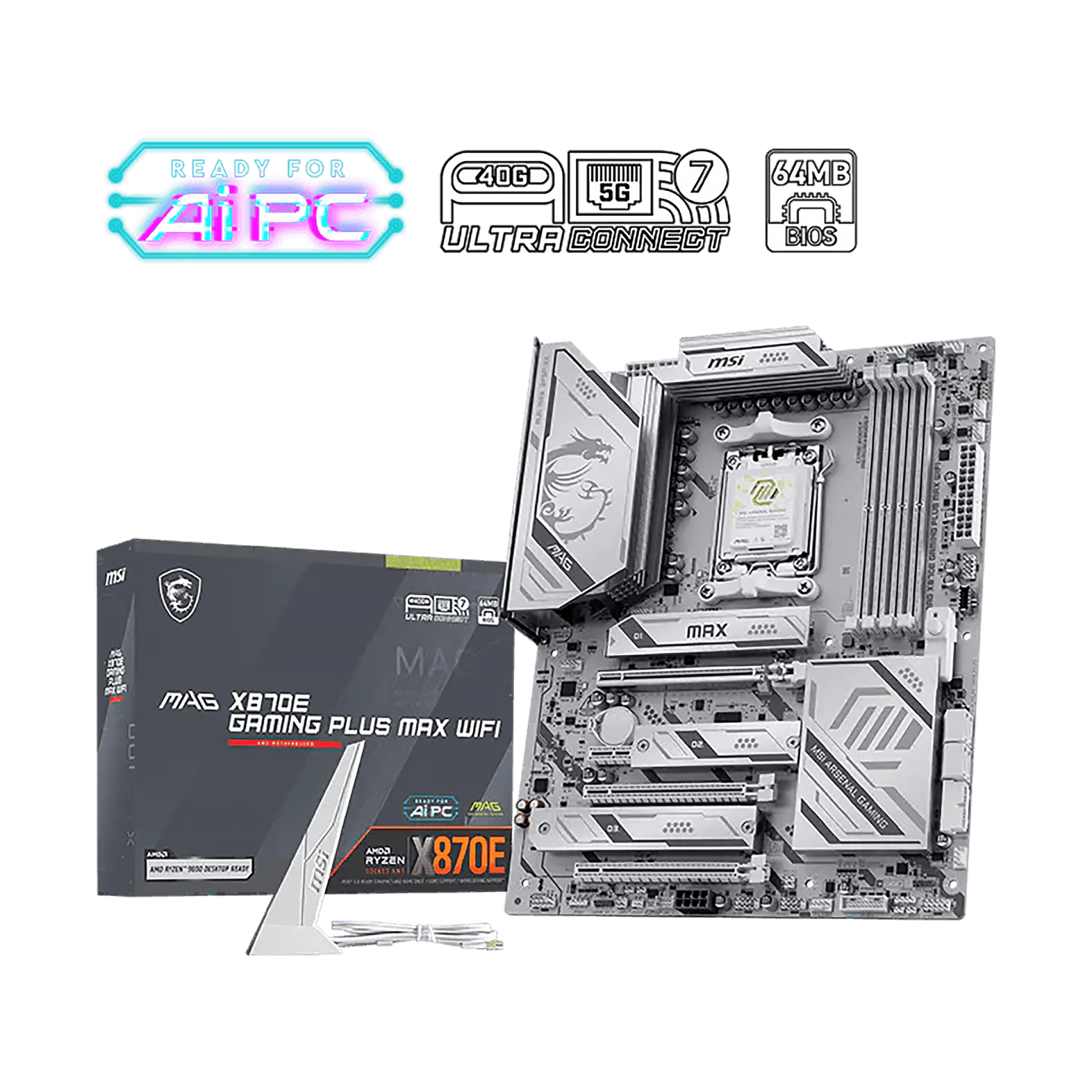

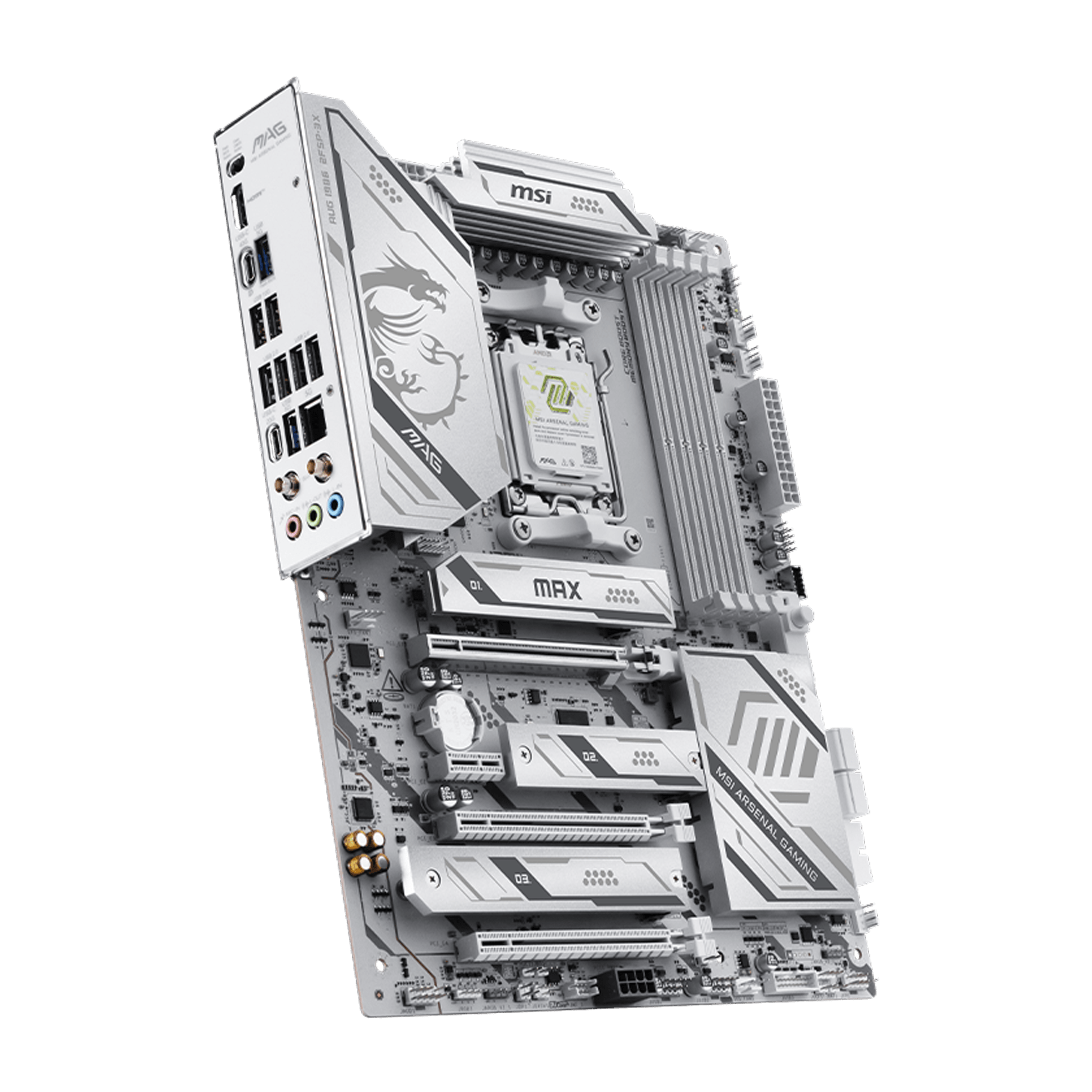

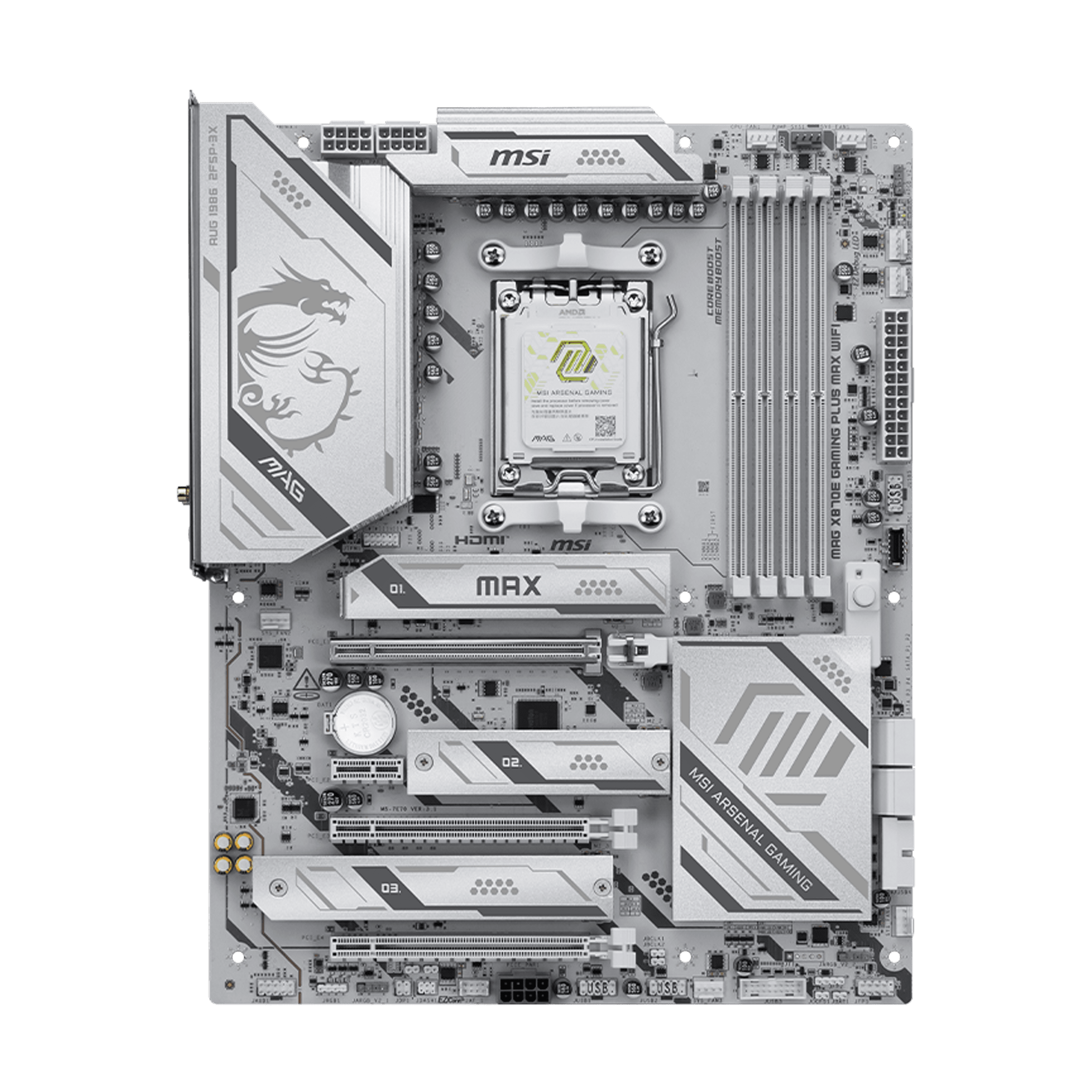

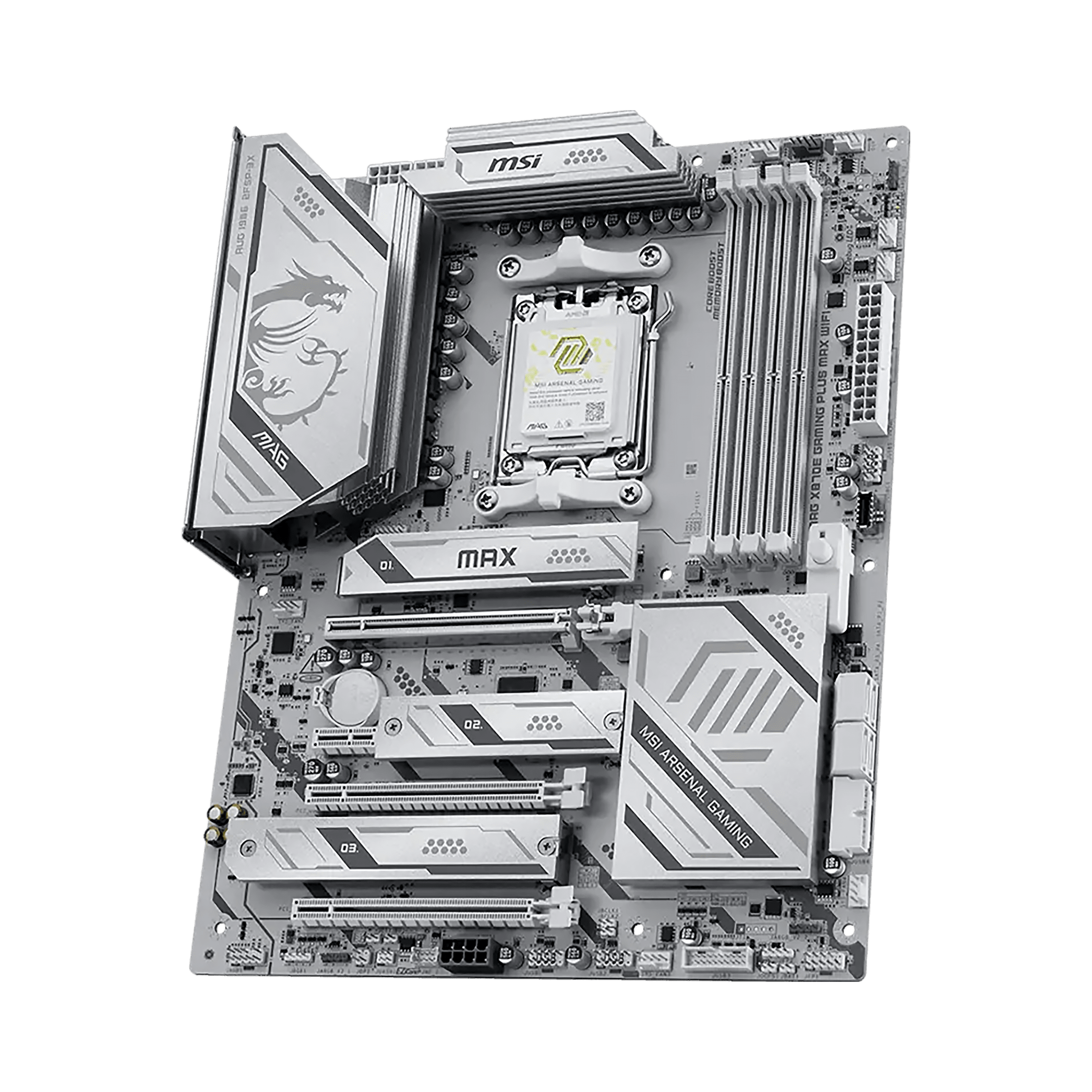

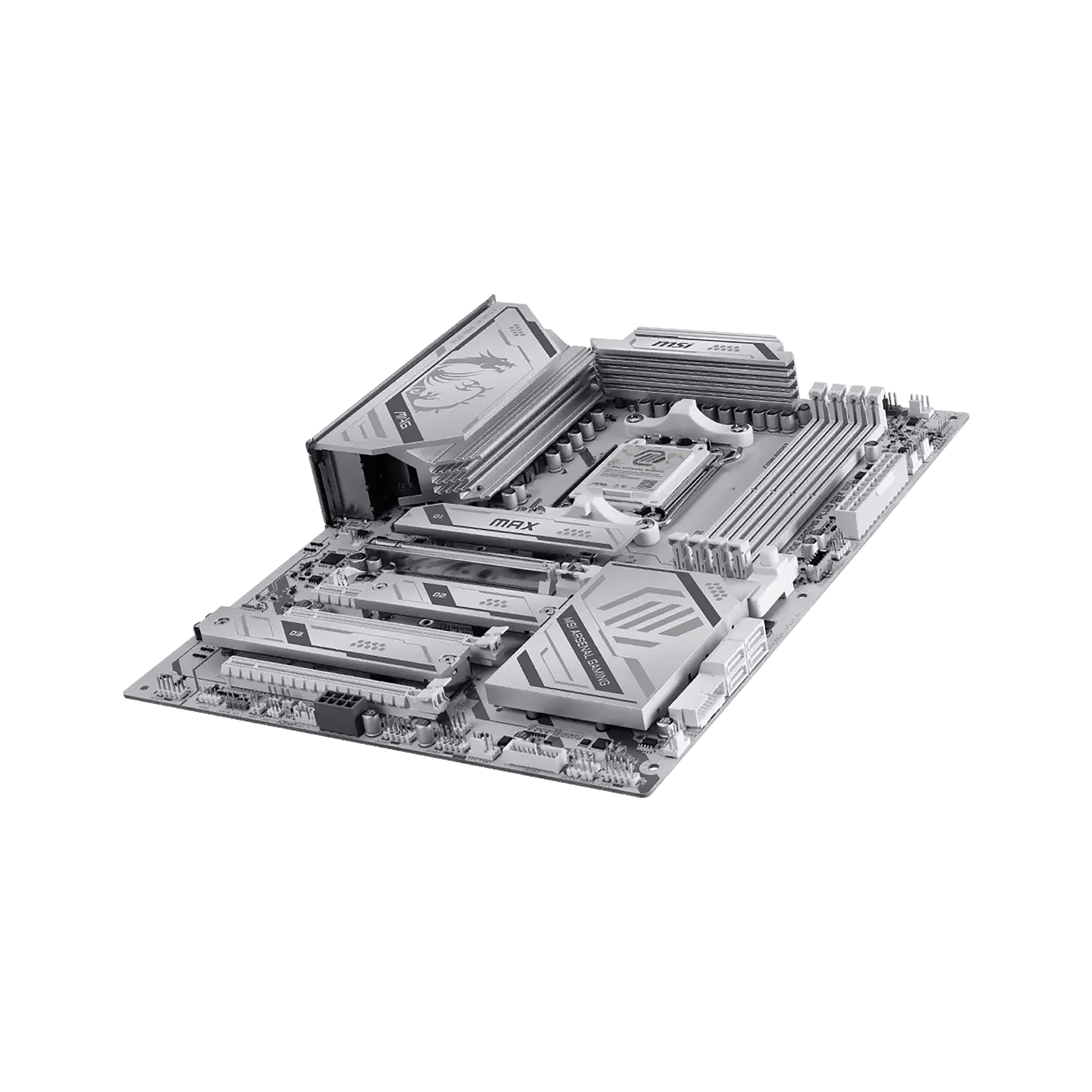

MSI MAG X870E GAMING PLUS MAX WIFI AM5 ATX Gaming Motherboard

$289.99

Export Specification - Copy And Paste Into Your Post

Specification

Brand

MSI

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

AMD X870E

CPU Socket

Socket AM5

Form Factor

ATX

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s, Ryzen™ 9000 Series Processors max. overclocking frequency (1DPC 1R Max speed up to 8200+ MT/s, 1DPC 2R Max speed up to 6400+ MT/s, 2DPC 1R Max speed up to 6400+ MT/s, 2DPC 2R Max speed up to 6000+ MT/s) [Supports AMD POR Speed and JEDEC Speed, Memory Overclocking and AMD EXPO™, Dual-Channel mode, Non-ECC and Un-buffered memory, CUDIMM (Clock Driver bypass mode only)

LAN

1x Realtek® 8126 5G LAN

Wireless LAN

Wi-Fi 7 [Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps / Supports 802.11 a/ b/ g/ n/ ac/ ax/ be] The Wireless module is pre-installed in the M.2 (Key-E) slot

Bluetooth

Supports Bluetooth® 5.4**, MLO, 4KQAM / 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. / The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

Audio

Realtek® ALC897, 7.1-Channel High Definition Audio

Storage

3x M.2 [M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 and supports 2280/2260 devices, M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 and supports 2280/2260 devices, M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 and supports 22110/2280 devices, 4x SATA 6G] / M.2_1 slot (From CPU) [Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors), Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)], M.2_2 slot (From CPU) [Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)], M.2_3 slot (From CPU) [Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors)]

Onboard Graphics

1x HDMI (Support HDMI 2.1 with TMDS, maximum resolution of 4K 60Hz), 1x Type-C DisplayPort (USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@120Hz) / Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Raid

Supports RAID 0, RAID 1 and Raid 10 for SATA storage devices / Supports RAID 0, RAID 1 and Raid 5 for M.2 NVMe storage devices (*RAID 5 configuration is only supported by Ryzen™ 9000 series processors.)

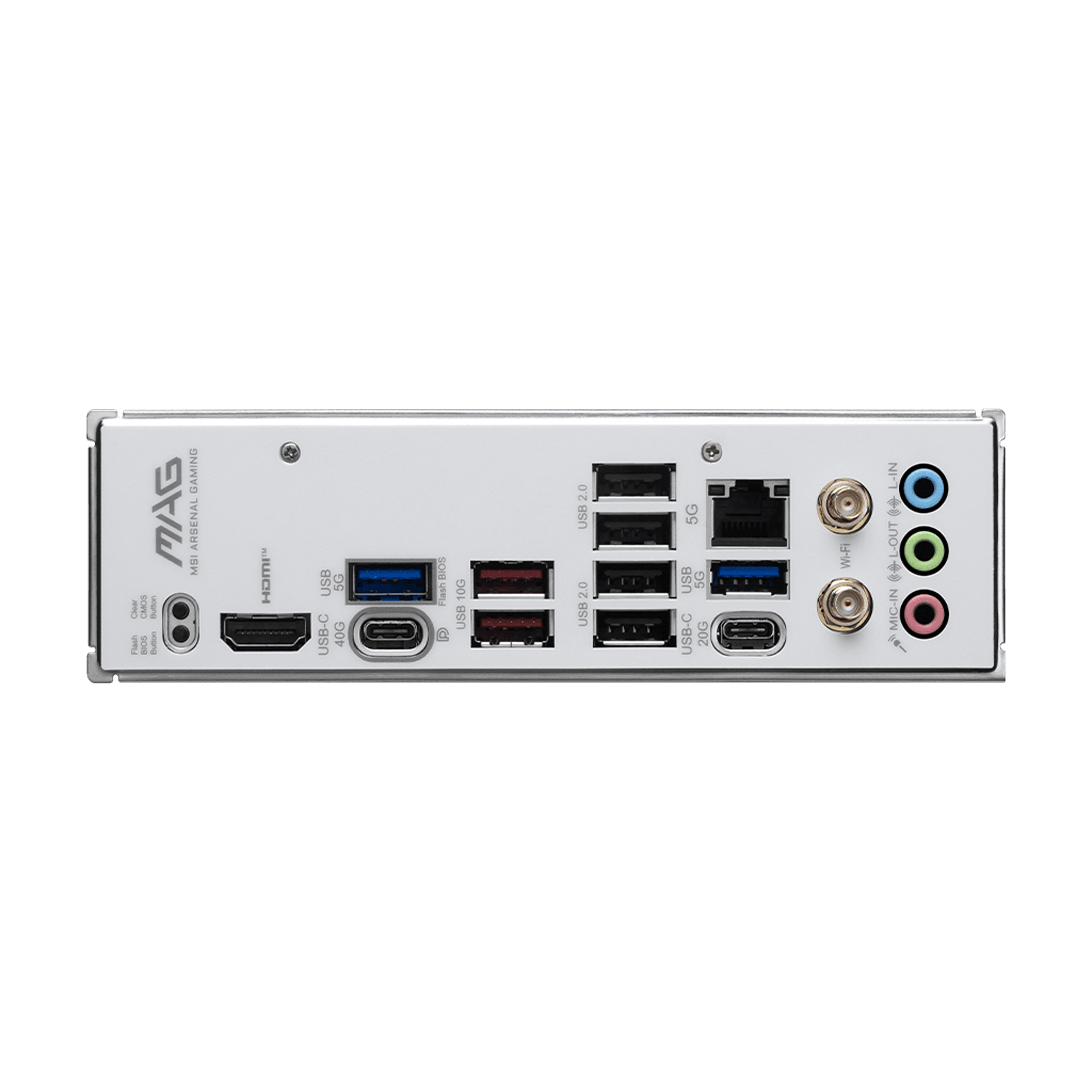

I/O (Rear)

Clear CMOS Button, USB 5Gbps Type-A, USB 2.0, 5G LAN, Wi-Fi / Bluetooth, Audio connectors, Flash BIOS Button, HDMI™, USB 40Gbps Type-C, USB 10Gbps Type-A, USB 20Gbps Type-USB 5Gbps Type-A

Expansion Slots

3x PCI-E x16 slot, 1x PCI-E x1 Slot [PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU), PCI_E2 Gen PCIe 3.0 supports up to x1 (From CPU), PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset), PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset), PCI_E1 slot [Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors), Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors), Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)]

USB (Front)

6x USB 2.0, 4x USB 5Gbps Type A, 1x USB 10Gbps Type C

USB (Rear)

4x USB 2.0, 2x USB 5Gbps Type A, 2x USB 10Gbps Type A, 1x USB 20Gbps Type C, 1x USB 40Gbps Type C

Internal Connectors

1x Power Connector(ATX_PWR), 2x Power Connector(CPU_PWR), 1x Power Connector(PCIE_PWR 8pin), 1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 6x System Fan, 1x EZ Conn-header (JAF_1), 2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x Tuning Controller connector(JDASH), 3x Addressable V2 RGB LED connector (JARGB_V2), 1x RGB LED connector(JRGB), 1x TPM pin header(Support TPM 2.0), 2x Direct OC Jumper (JBCLK), 6x USB 2.0 ports, 4x USB 5Gbps Type A ports, 1x USB 10Gbps Type C ports

UPC

824142448571

Warranty

Refer to Manufacturer's Warranty

Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
Ultra Performance: 14+2+1 Duet Rail Power System 60A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution
EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
