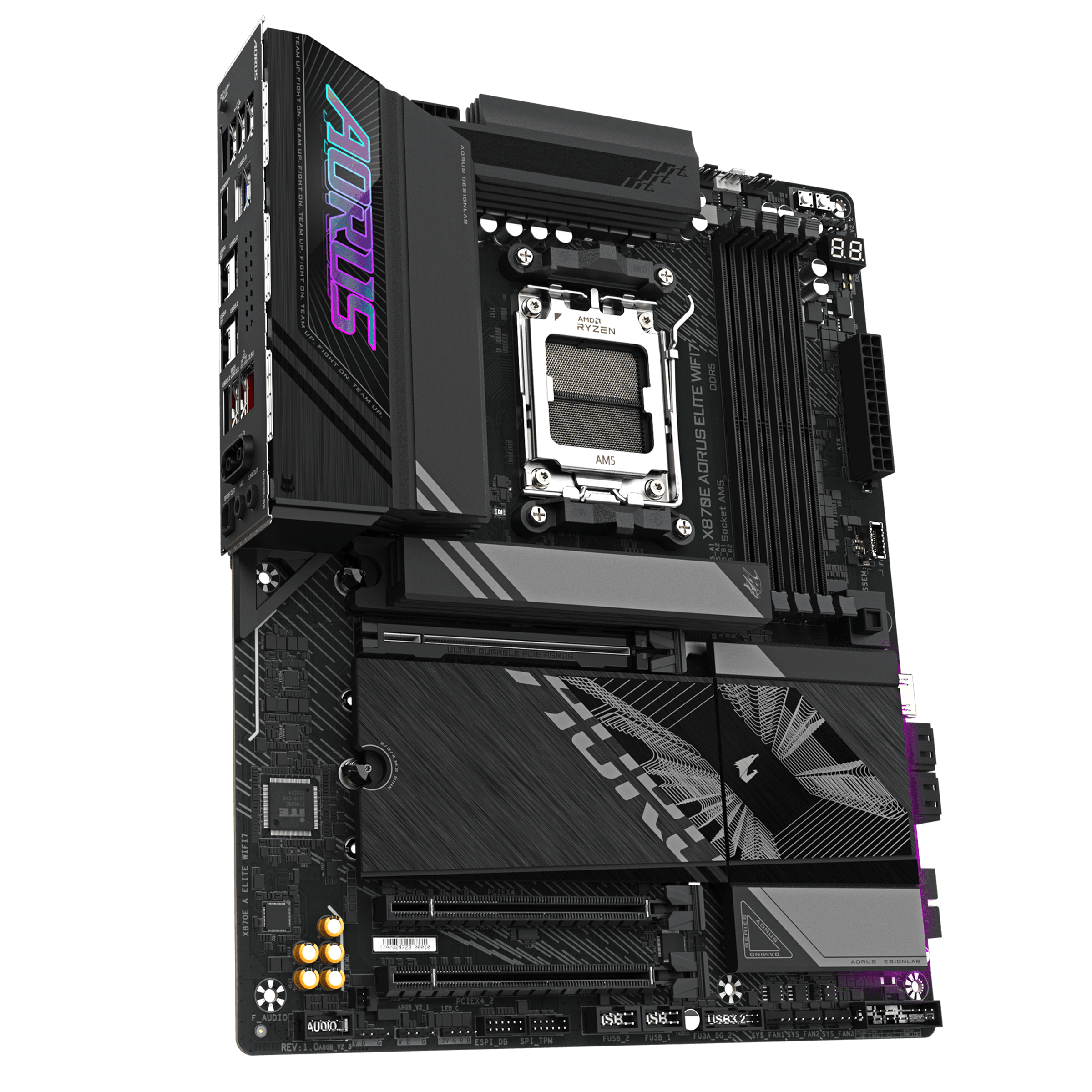

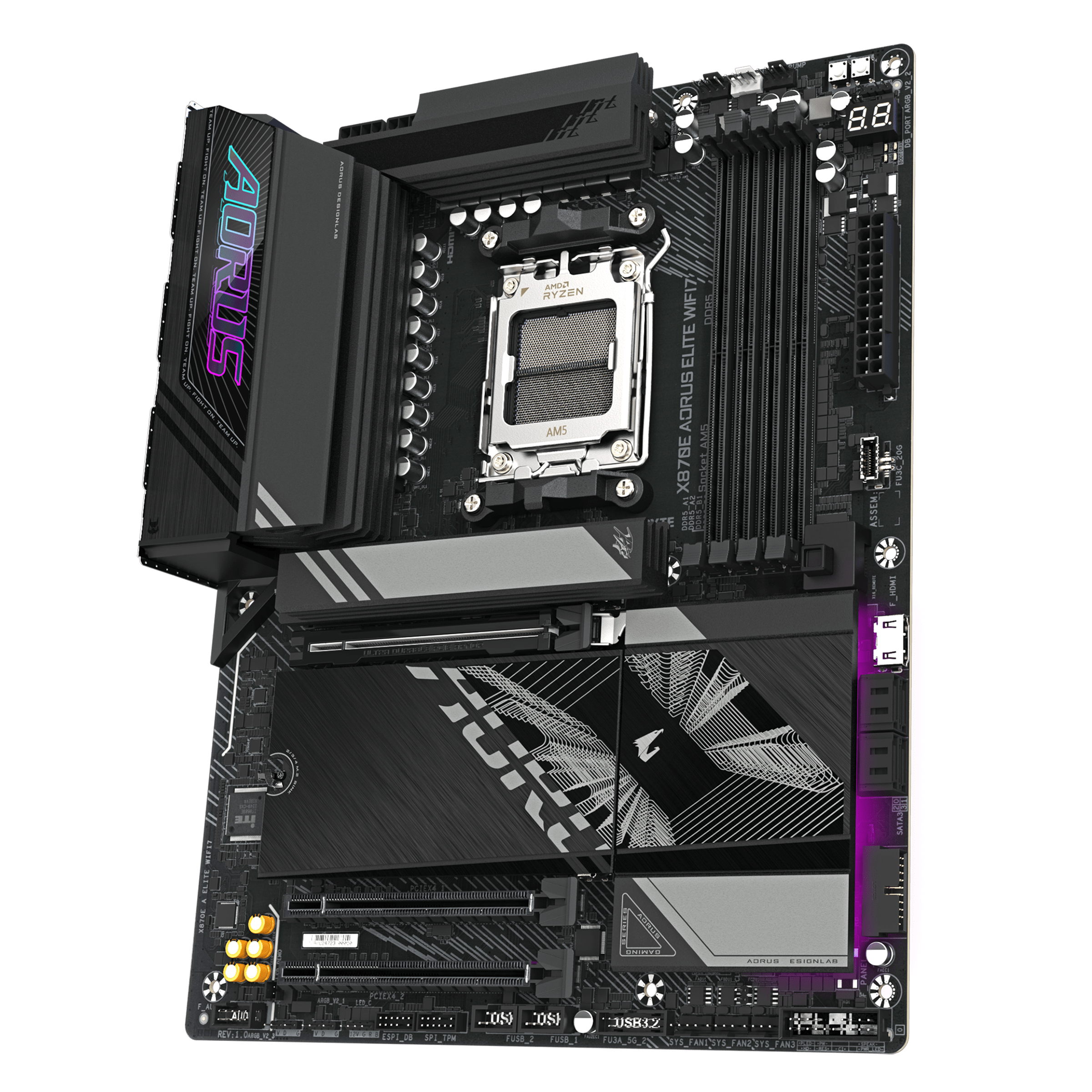

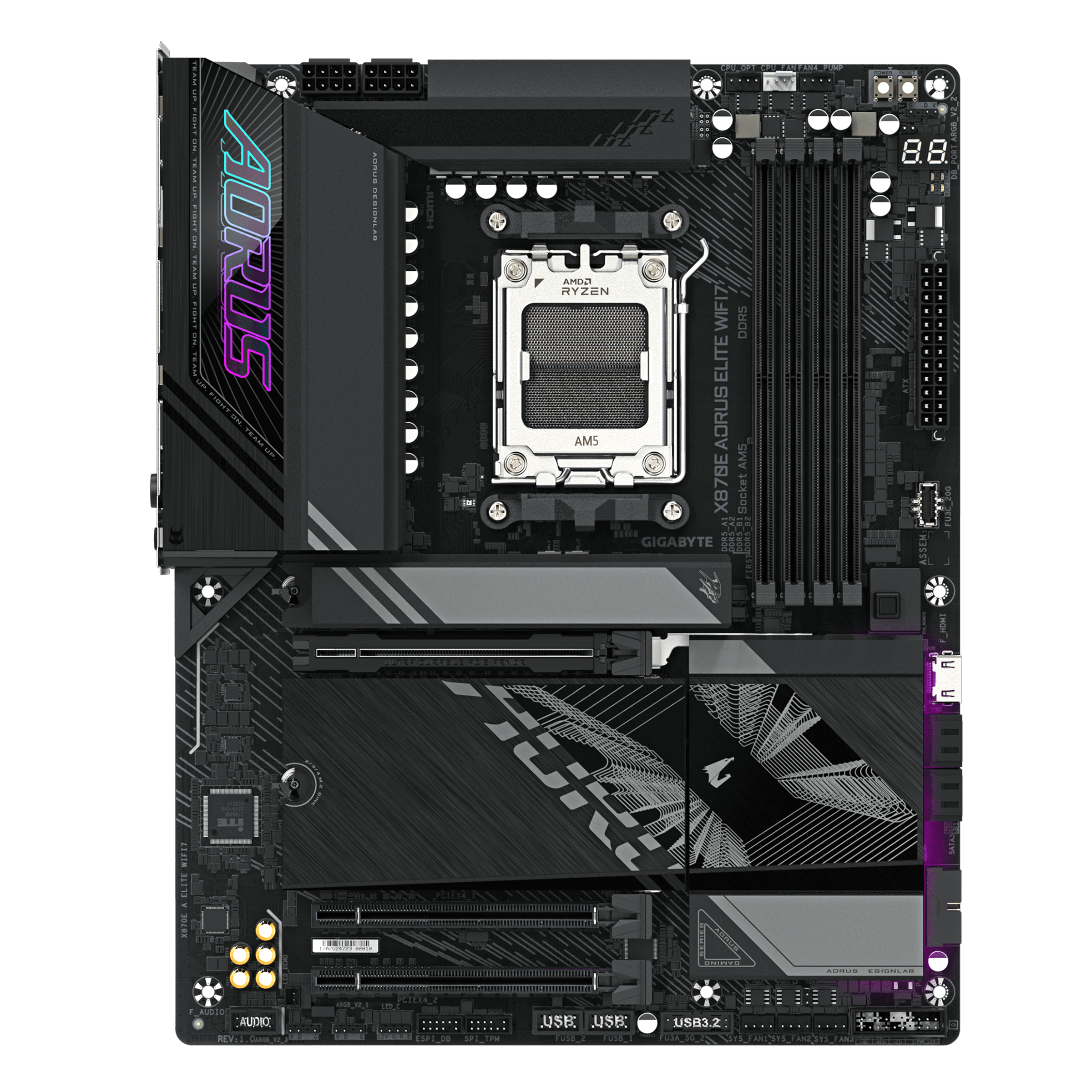

Gigabyte X870E AORUS ELITE Gaming Motherboard
Gigabyte X870E AORUS ELITE Gaming Motherboard
$339.99
Specification
Brand
Gigabyte
CPU
Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors
Chipset
AMD X870E
CPU Socket
Socket AM5
Form Factor
ATX
Memory
Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) /6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules, 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, [Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules]
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless LAN
Wi-Fi 7 (WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands)(Support for 11be 160MHz wireless standard)
Bluetooth
Bluetooth® 5.4
Audio
Realtek® ALC1220 CODEC (High Definition Audio: 2/4/5.1/7.1-channel)
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs (AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs) / 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs (AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs) / 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs / 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices / RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Onboard Graphics
2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz, 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz, 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

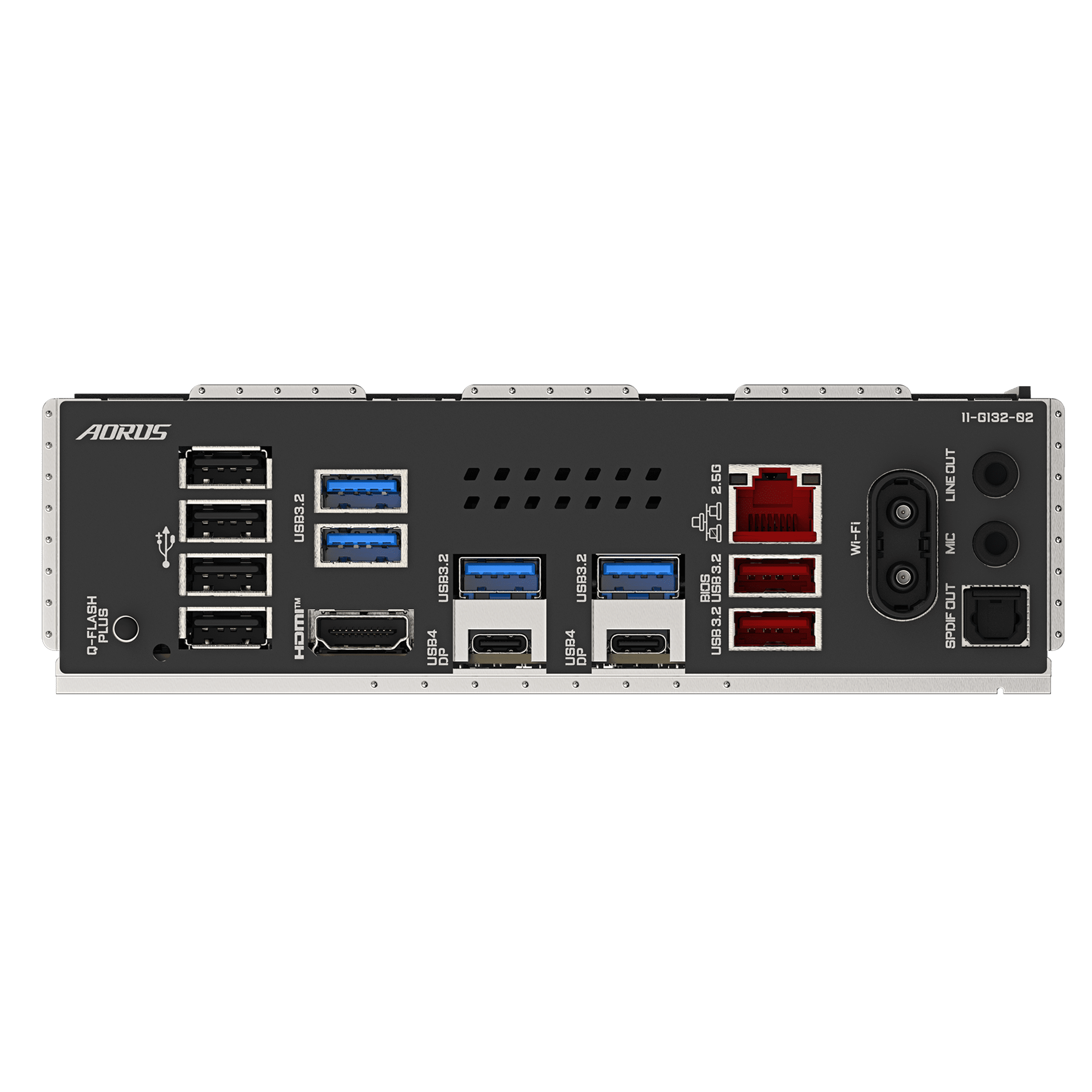

Back Panel Connectors
1 x Q-Flash Plus button, 4 x USB 2.0/1.1 ports, 1 x HDMI port (Note), 4 x USB 3.2 Gen 1 ports, 2 x USB4® USB Type-C® port (DisplayPort (Note)), 2 x USB 3.2 Gen 2 Type-A ports (red), 1 x RJ-45 port, 2 x antenna connectors (2T2R), 1 x optical S/PDIF Out connector, 2 x audio jacks
Expansion Slots
1x PCI Express x16 slot (PCIEX16), integrated in the CPU (AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode), When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode (AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode), Chipset (1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 [PCIEX4_1], 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 [PCIEX4_2])
USB
CPU+ASMedia USB4® controller (2 x USB4® USB Type-C® ports on the back panel) / CPU (1 x USB 3.2 Gen 1 Type-A port (red) on the back panel) / Chipset [1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header, 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel, 7 x USB 3.2 Gen 1 ports (3 ports on the back panel, 4 ports available through the internal USB headers), 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)]
Internal I/O Connectors
1 x 24-pin ATX main power connector, 2 x 8-pin ATX 12V power connectors, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 3 x system fan headers, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 4 x SATA 6Gb/s connectors, 4 x M.2 Socket 3 connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support, 2 x USB 3.2 Gen 1 headers, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only), 1 x HDMI port (Note), 1 x power button, 1 x reset button, 1 x reset jumper, 1 x Clear CMOS jumper
Dimensions
9.60 in. x 12.00 in.
Warranty
Refer to Manufacturer's Warranty
Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Supports DDR5 Memory
Comprehensive Thermal
Infinite Memory Performance
PCIe 5.0 Design
DIY Friendly
