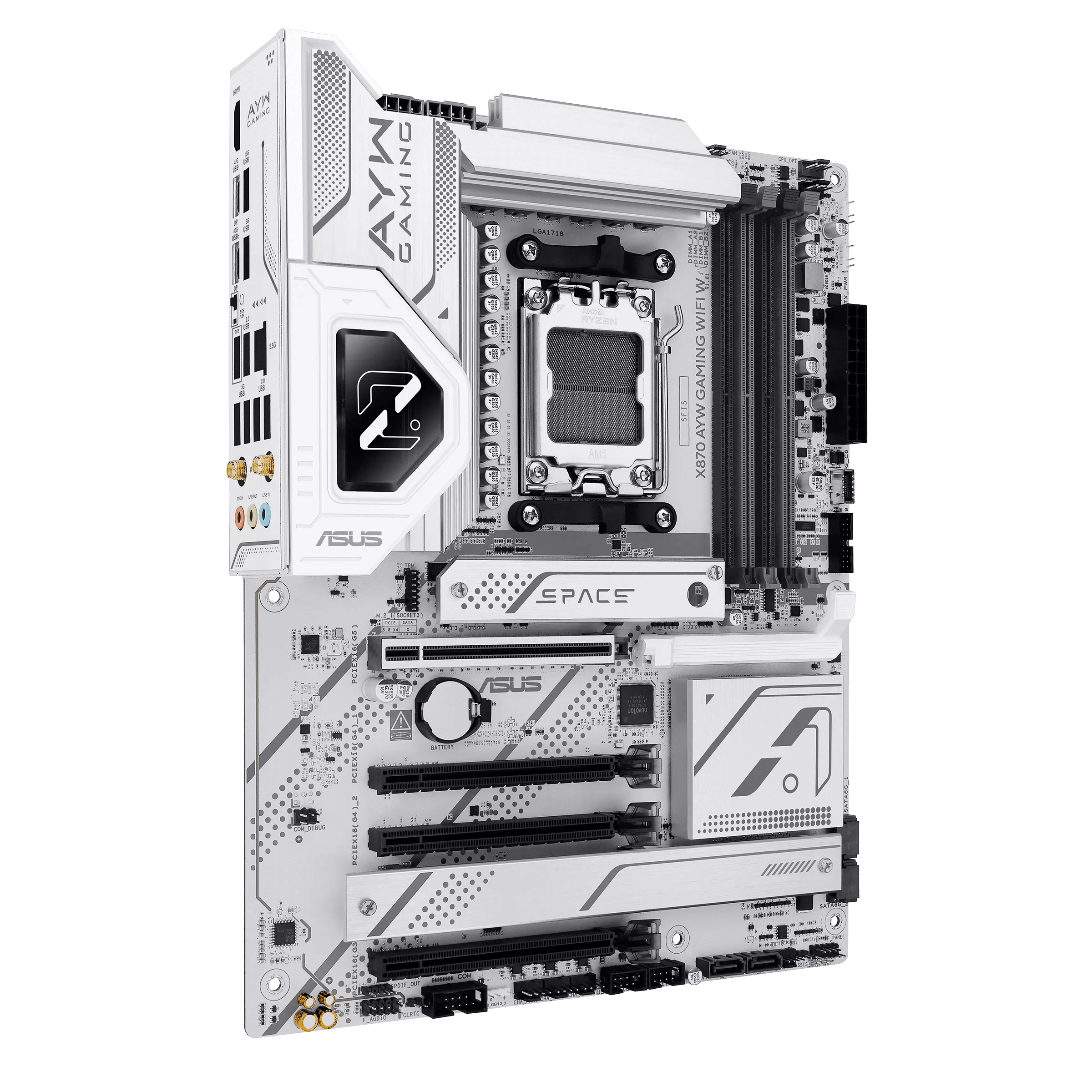

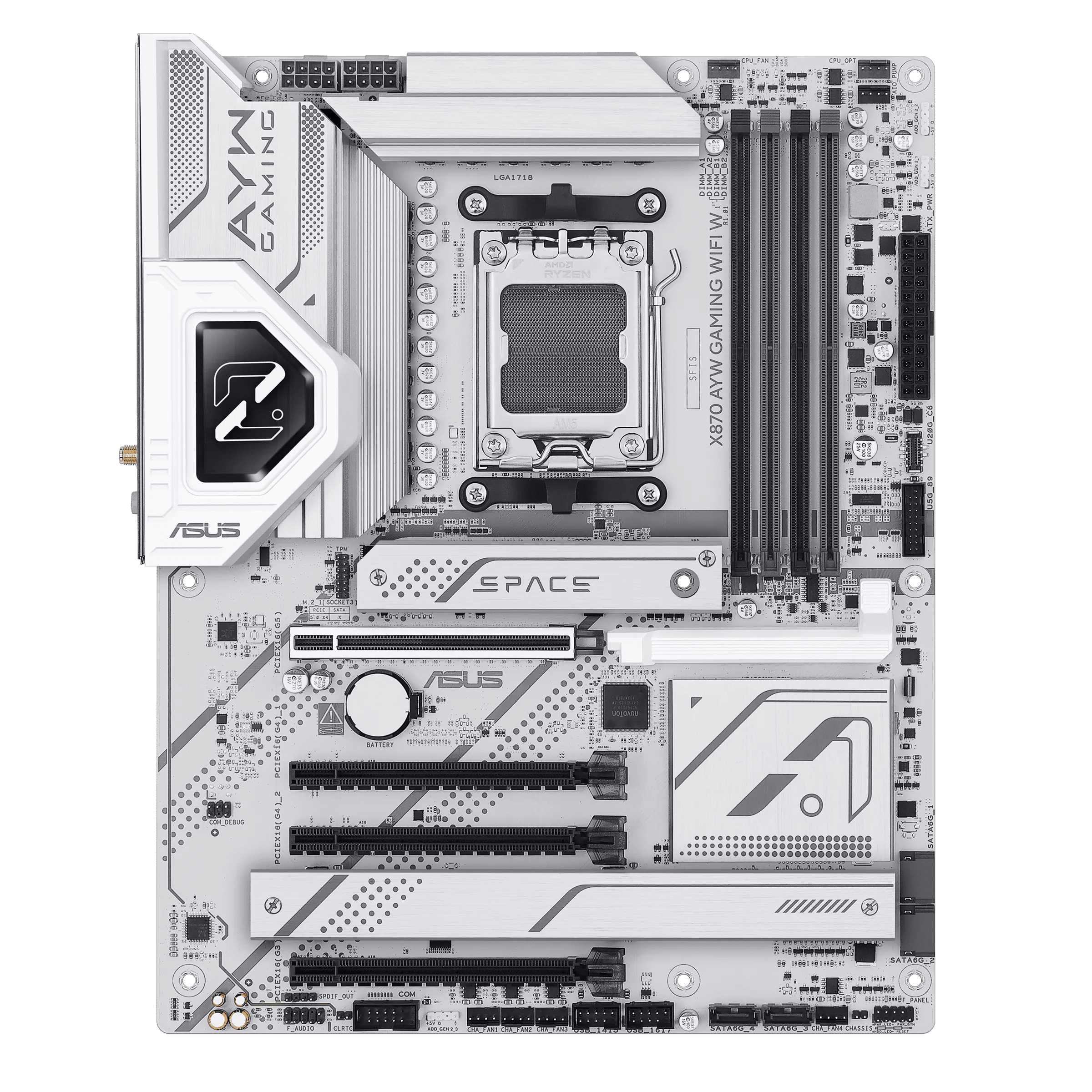

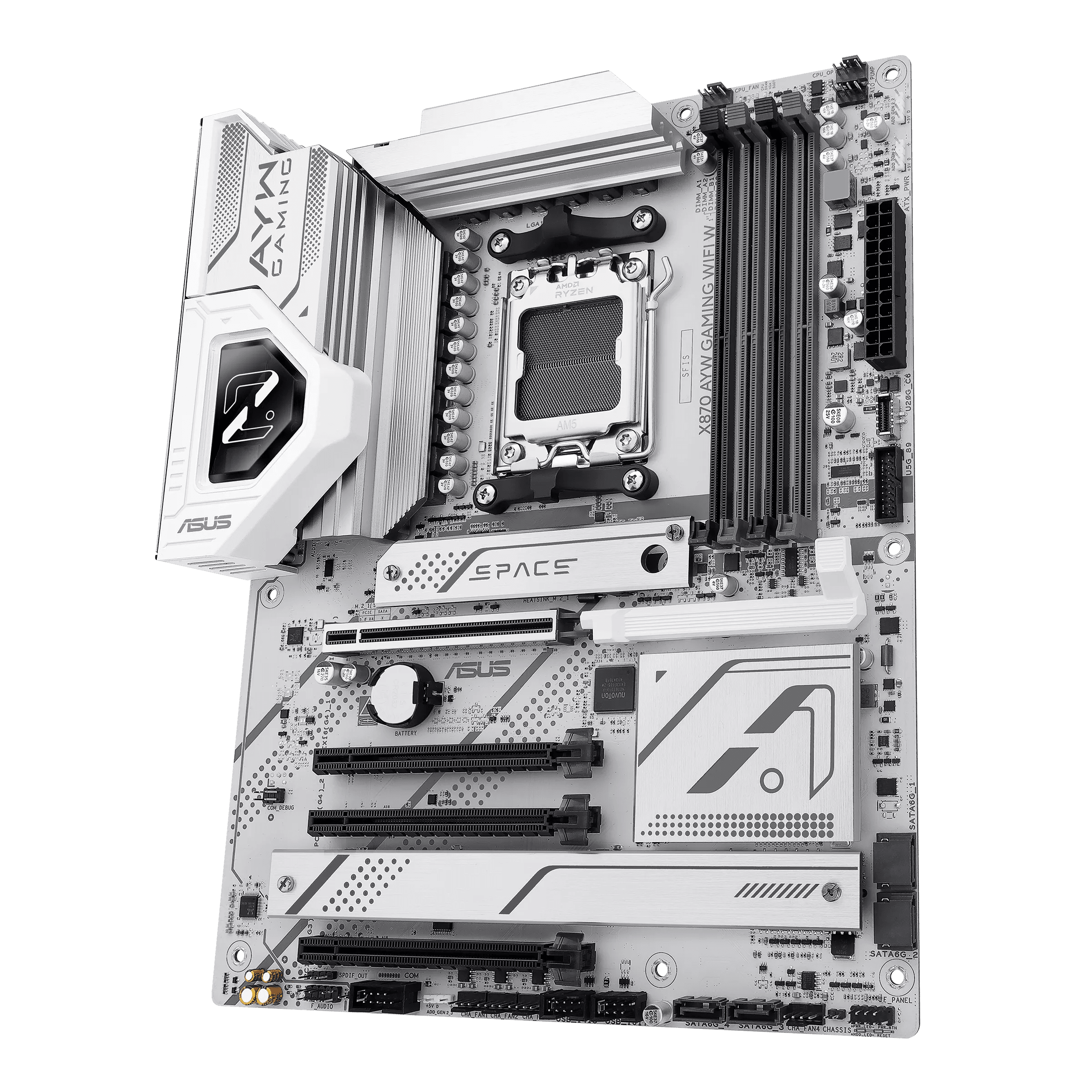

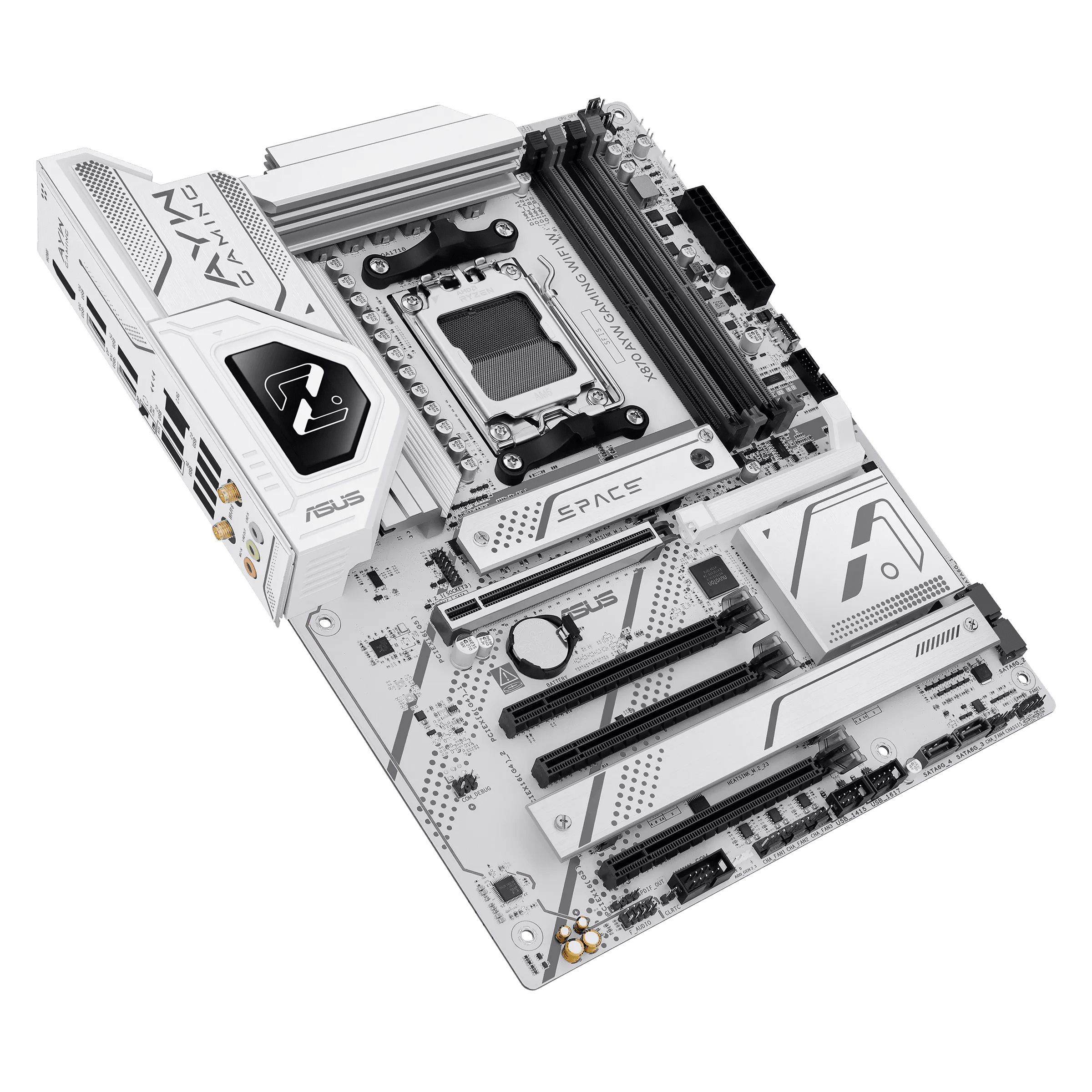

ASUS X870 AYW GAMING WIFI AM5 ATX Gaming Motherboard - White

$239.99

Export Specification - Copy And Paste Into Your Post

Specification

Brand

ASUS

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

AMD X870

CPU Socket

Socket AM5

Form Factor

ATX

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM [Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)]

LAN

1 x Realtek 2.5Gb Ethernet, ASUS LANGuard

Wireless LAN

Wi-Fi 6, 1x1 Wi-Fi 6 (802.11ax) [Supports 2.4/5GHz frequency band, Bluetooth v5.4

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports / AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) / AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) / AMD X870 Chipset: M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports

Onboard Graphics

1x HDMI, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Raid

AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors (RAID 0/1/5/10), Ryzen™ 8000 Series Processors: (RAID 0/1), Ryzen™ 7000 Series Processors: (RAID 0/1/10)

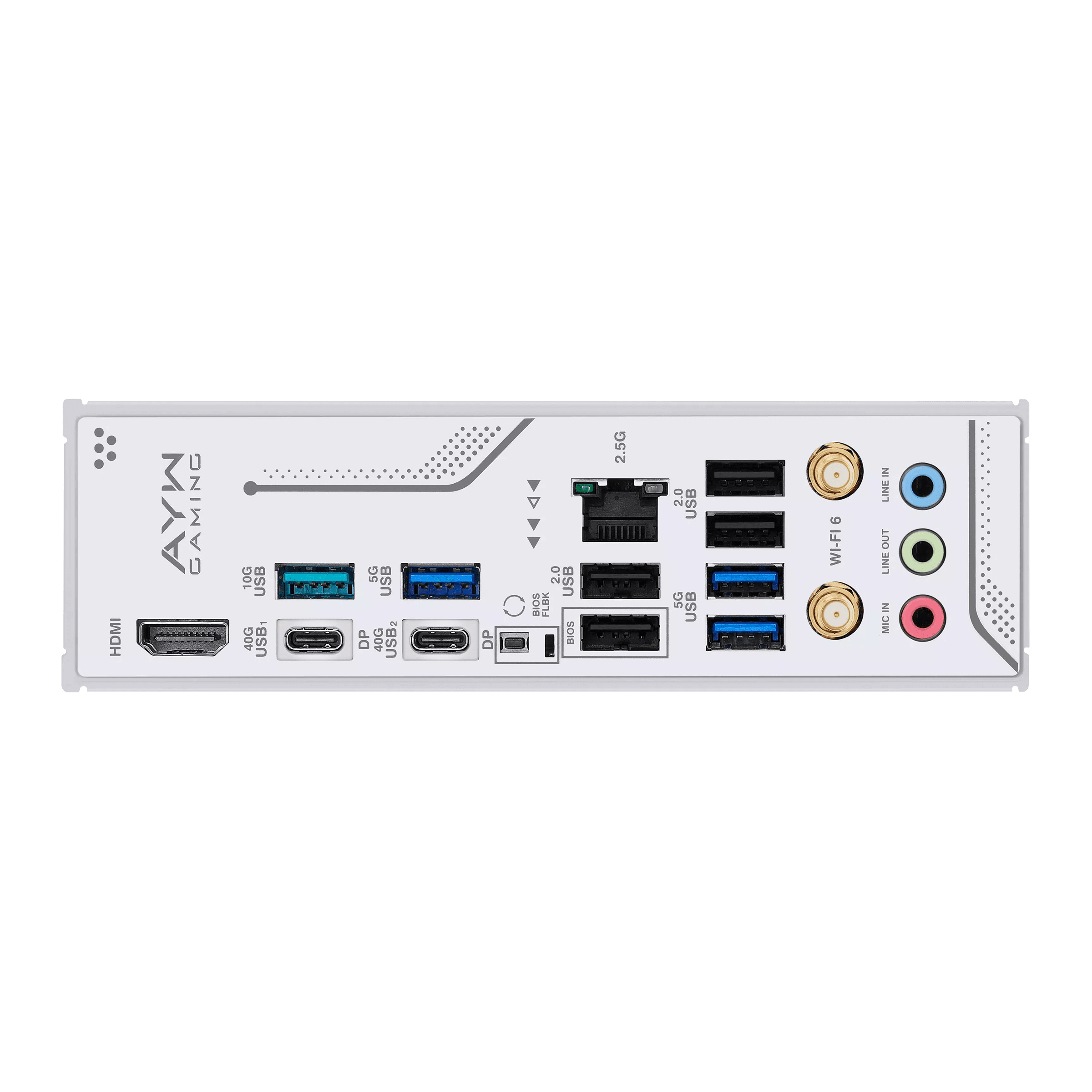

I/O (Rear)

2 x USB4® (40Gbps) ports (2 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Realtek 2.5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack™ button

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode) / AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD X870 Chipset: 2 x PCIe 4.0 x16 slots (support x1 mode), 1 x PCIe 3.0 x16 slot (supports x1 mode)

USB (Front)

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports

USB (Rear)

2 x USB4® (40Gbps) ports (2 x USB Type-C®), 1 x USB 10Gbps port (1 x Type-A), 3 x USB 5Gbps ports (3 x Type-A), 4 x USB 2.0 ports (4 x Type-A)

Internal Connectors

1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 4 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, 3 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 20Gbps connector (supports USB Type-C®), 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports, 2 x USB 2.0 headers support 4 additional USB 2.0 ports, 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x Front Panel Audio header (F_AUDIO), 1 x S/PDIF Out header, 1 x SPI TPM header (14-1 pin), 1 x 10-1 pin System Panel header

Dimensions

9.60 in. x 12.00 in.

Warranty

Refer to Manufacturer's Warranty

Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
12+2+1 80A DrMOS power stages, 8-layer PCB, ProCool connectors, alloy chokes and durable capacitors for stable power delivery
Wi-Fi 6, PCIe 5.0 x16 slot, PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, USB4® (40Gbps) Type-C® ports, front USB 20Gbps Type-C® with PD Fast Charge Support
Large VRM heatsink, Dual M.2 heatsinks, PCH heatsink, hybrid fan headers and Fan Xpert 4 with AI Cooling II
Pre-mounted I/O shield, PCIe Slot Q-Release, M.2 Q-Latch, BIOSFlashBack™, Q-Dashboard, Q-LED
