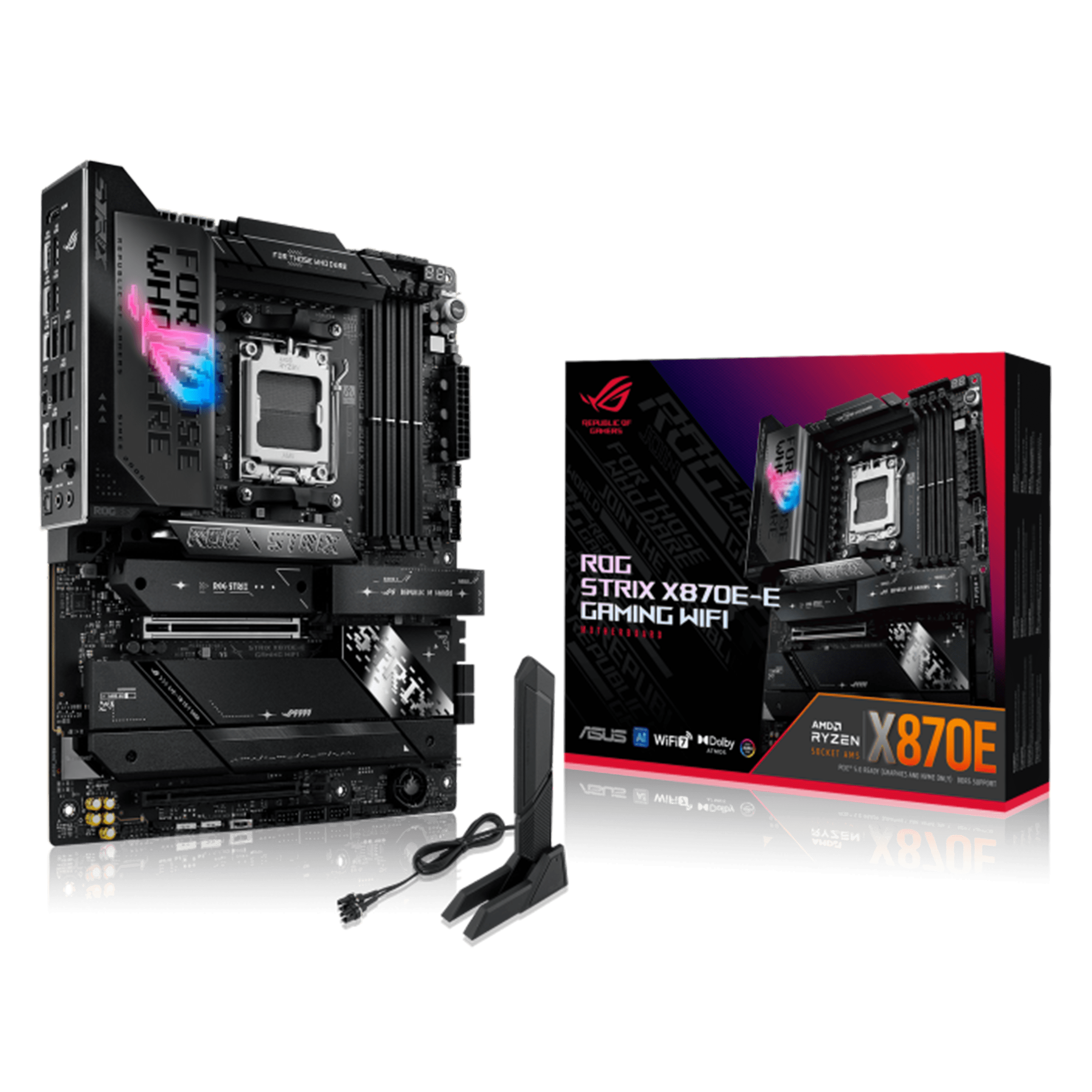

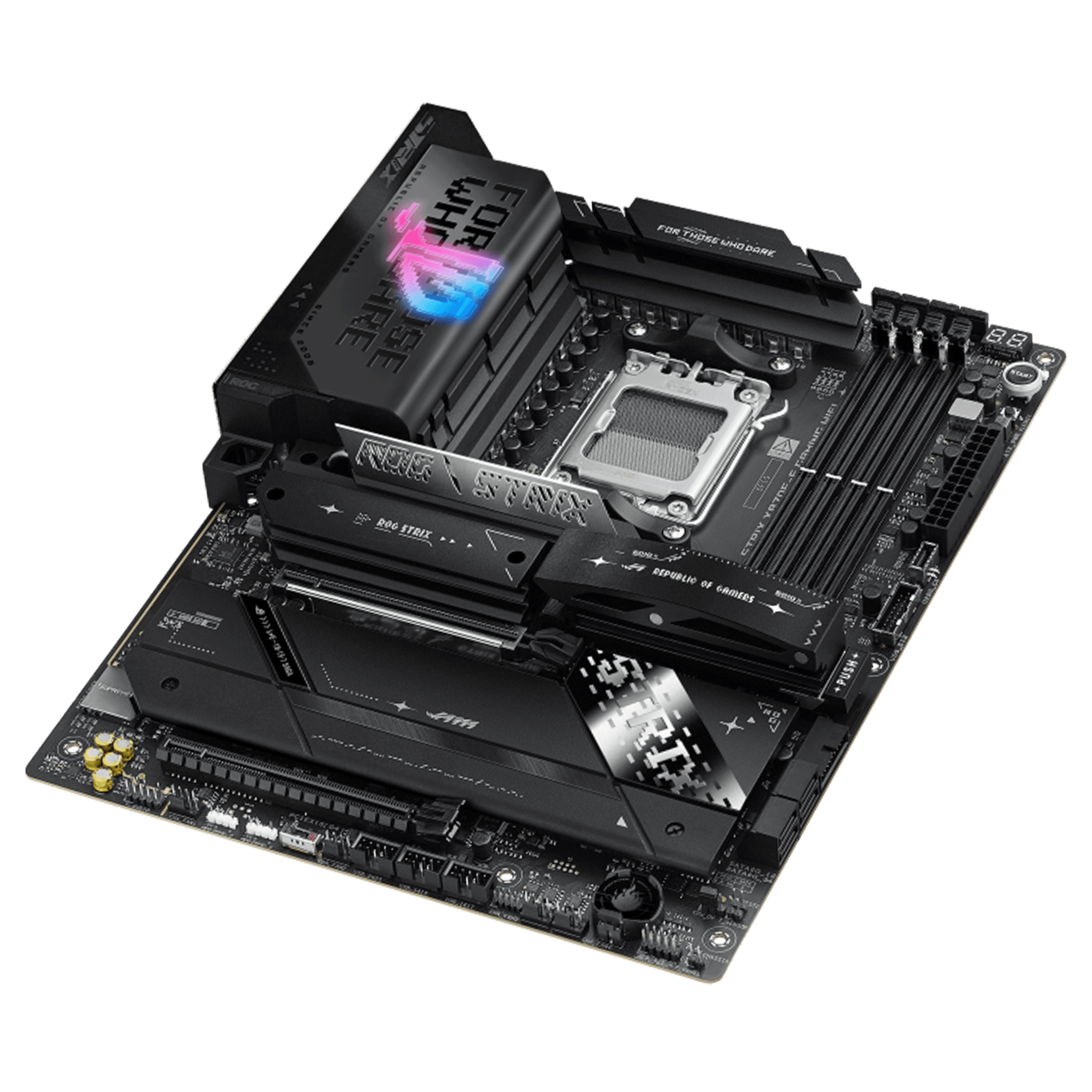

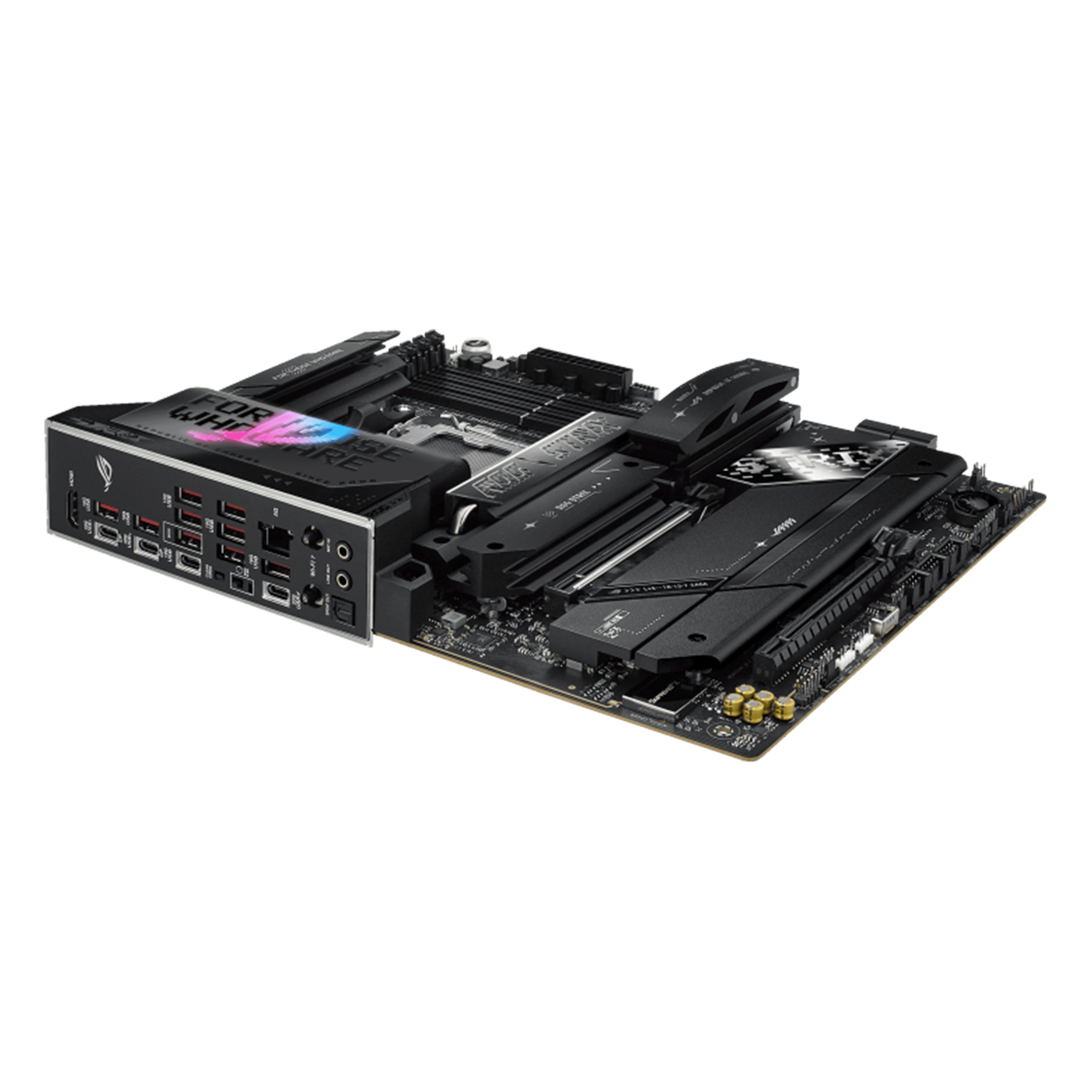

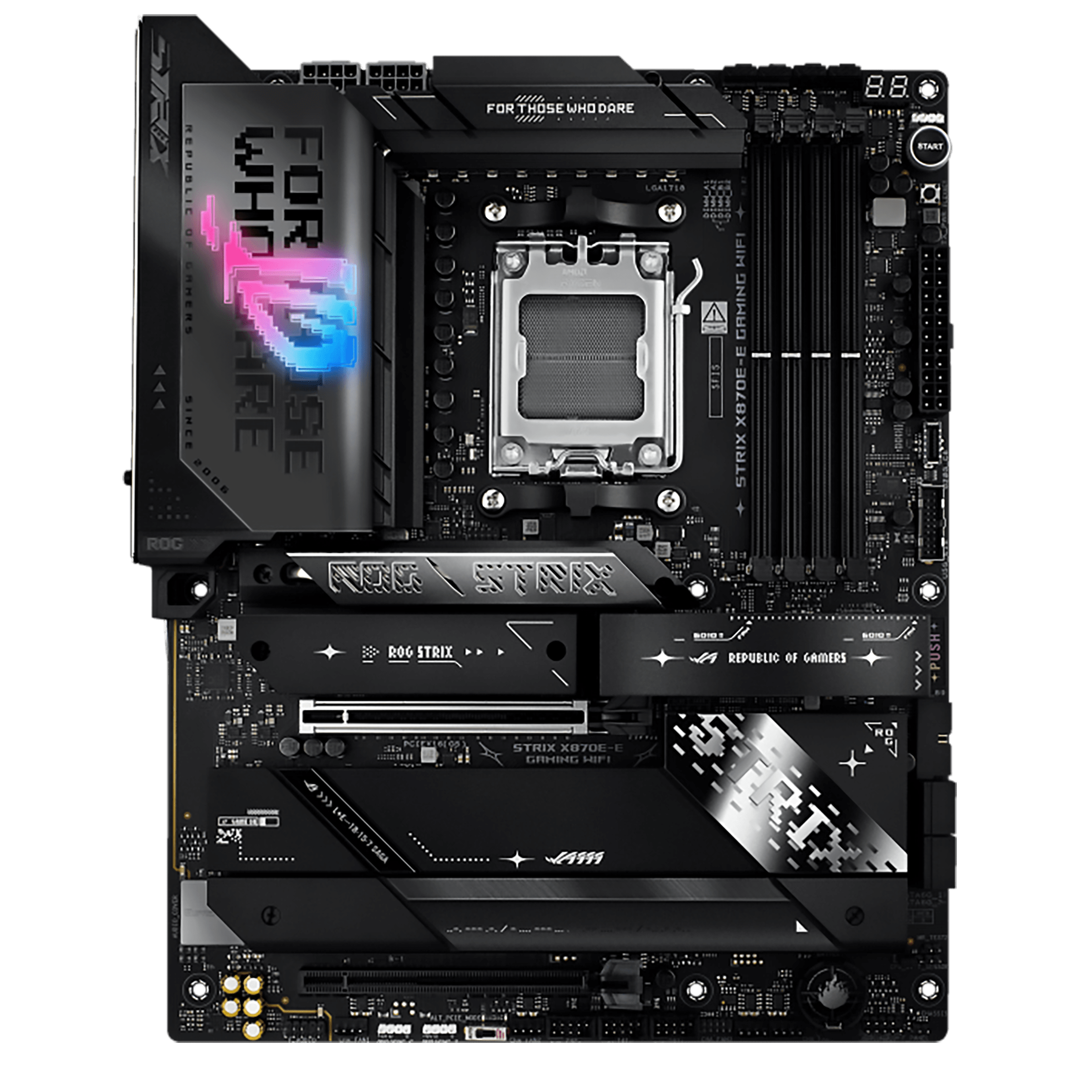

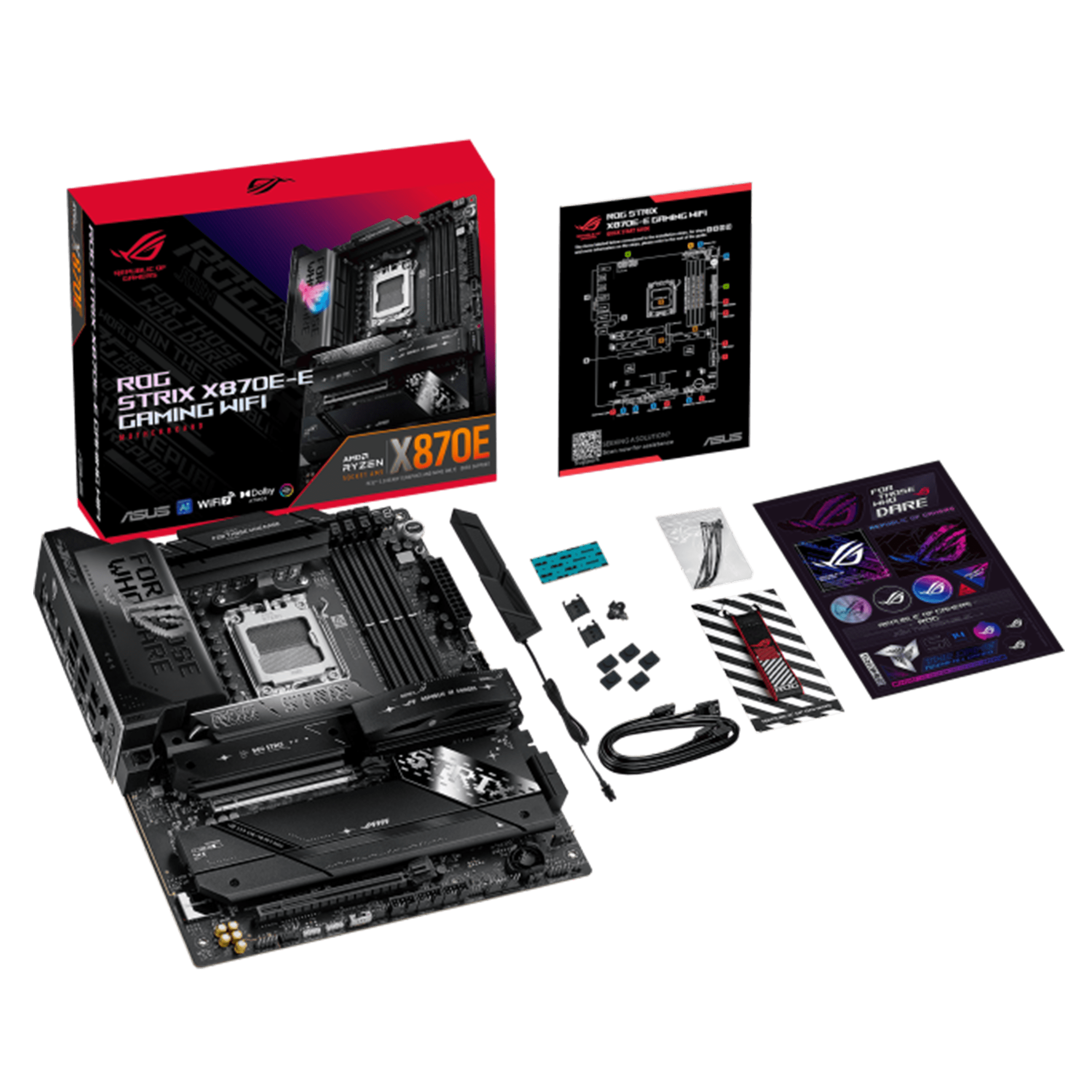

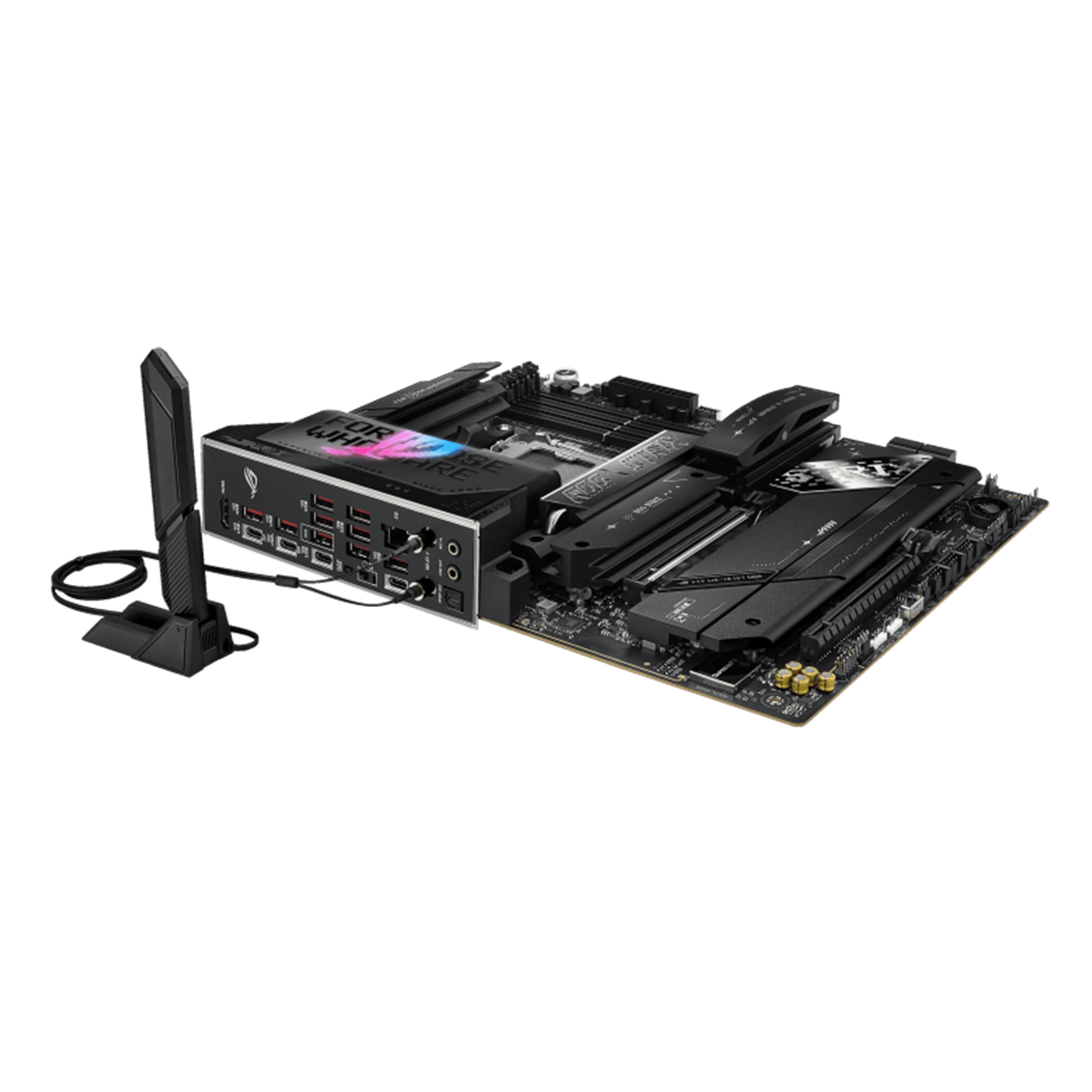

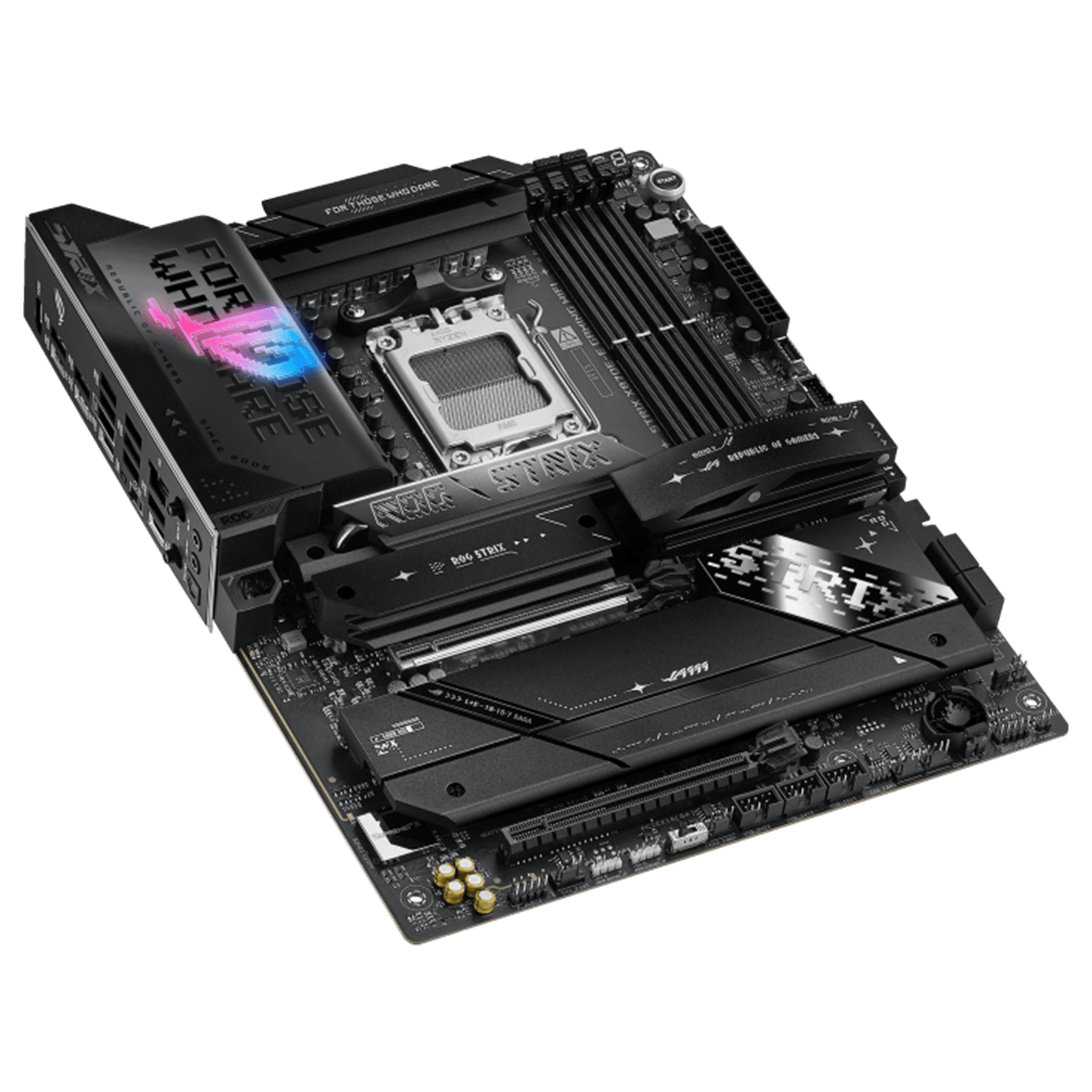

ASUS ROG STRIX X870E-E GAMING WIFI AM5 ATX Gaming Motherboard

Export Specification - Copy And Paste Into Your Post

$499.95

Specification

Brand

ASUS

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

AMD X870E

CPU Socket

Socket AM5

Form Factor

ATX

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8400+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM [Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)]

LAN

1 x Realtek 5Gb Ethernet, ASUS LANGuard

Wireless LAN

Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be) [Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth (up to 6.5Gbps transfer rate), Bluetooth v5.4

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Storage

Supports 5 x M.2 slots and 4 x SATA 6Gb/s ports / AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) / AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot (Key M), type 2242/2260/2280 (Not supported), M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supported) / AMD X870E Chipset: M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports

Onboard Graphics

1x HDMI, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Raid

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Funciton is only supportted by AMD Ryzen™ 9000series CPU

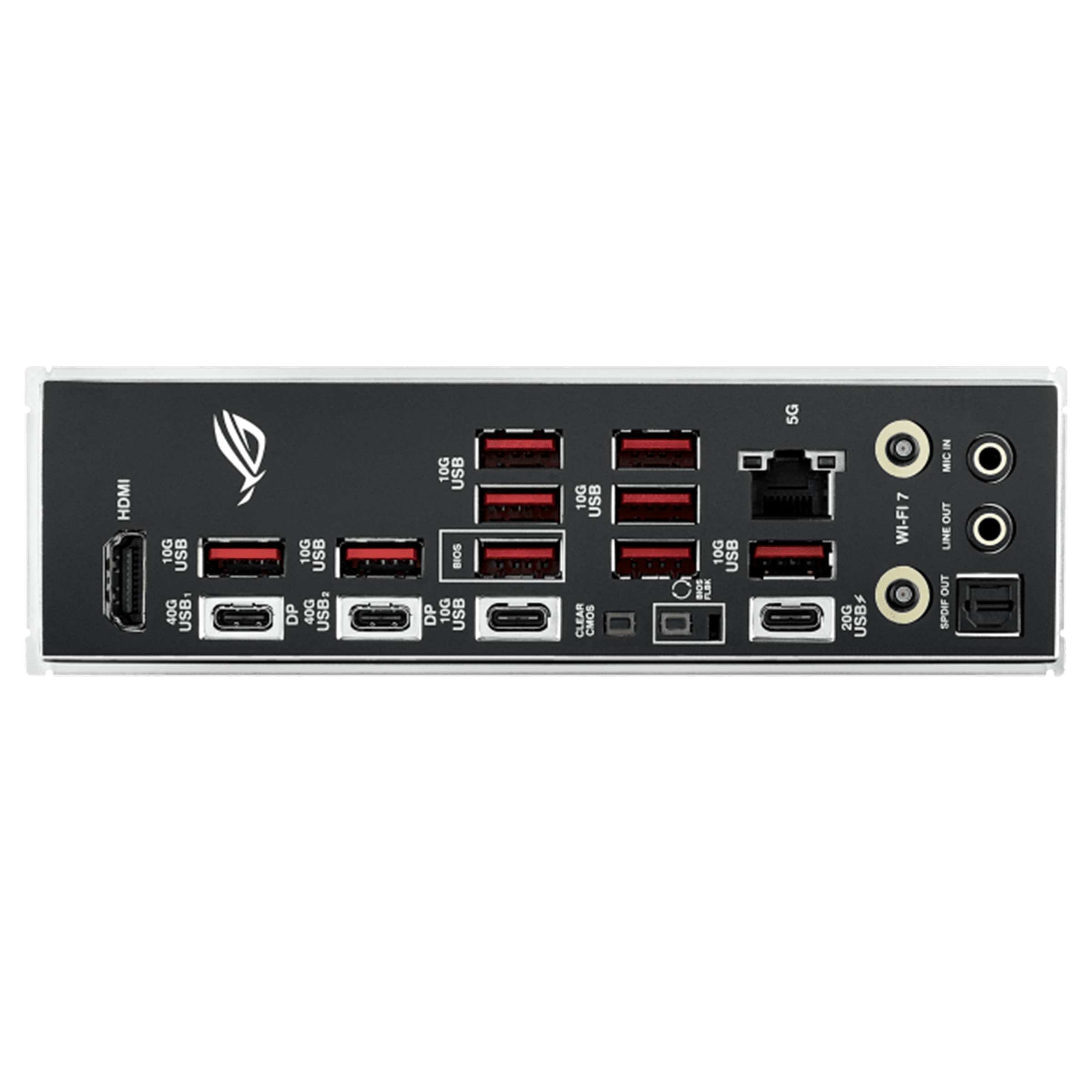

I/O (Rear)

2 x USB4® (40Gbps) ports (2 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge), 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®), 1 x HDMI™ port, 1 x Wi-Fi Module, 1 x Realtek 5Gb Ethernet, 2 x Gold-plated audio jacks, 1 x Optical S/PDIF out port, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 1 x PCIe 5.0 x16 slot (supports x16 mode) / AMD Ryzen™ 8000 Series Desktop Processors: 1 x PCIe 4.0 x16 slot (supports x8/x4 mode), AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)

USB (Front)

1 x USB 20Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports

USB (Rear)

2 x USB4® (40Gbps) ports(2 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C® with up to 30W PD Fast-charge), 10 x USB 10Gbps ports (9 x Type-A + 1 x USB Type-C®)

Internal Connectors

1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connectors, 5 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 20Gbps connector (supports USB Type-C®), 2 x USB 5Gbps headers support additional 4 USB 5Gbps ports, 3 x USB 2.0 headers support additional 6 USB 2.0 ports, 3 x Addressable Gen 2 headers, 1 x CPU Over Voltage jumper, 1 x FlexKey button, 1 x Front Panel Audio header (F_AUDIO), 1 x Start button, 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header

Dimensions

9.60 in. x 12.00 in.

Warranty

Refer to Manufacturer's Warranty

Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking and AEMP to simplify setup and improve performance
Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
Three onboard PCIe® 5.0 M.2 slots, and two PCIe 4.0 M.2 slots, all with substantial cooling solutions
Dual USB4® Type-C ports, USB 20Gbps Type-C® front-panel connector, one USB 10Gbps port with PD 3.0 up to 30W and USB Wattage Watcher, nine additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlots, HDMI™ port
PCIe Slot Q-Release Slim, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, Start button, BIOS FlashBack™ button, Clear CMOS button and pre-mounted I/O shield
ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers
