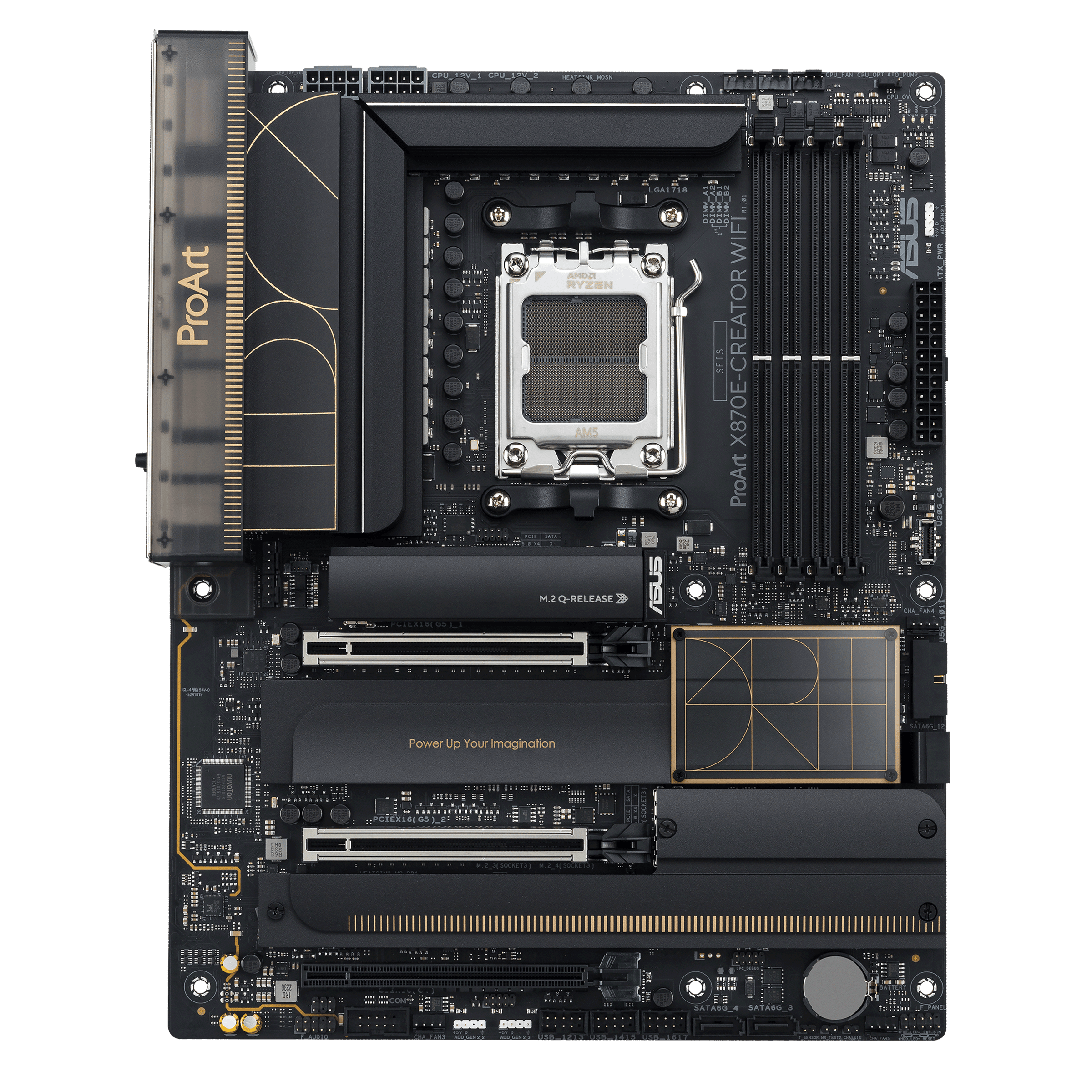

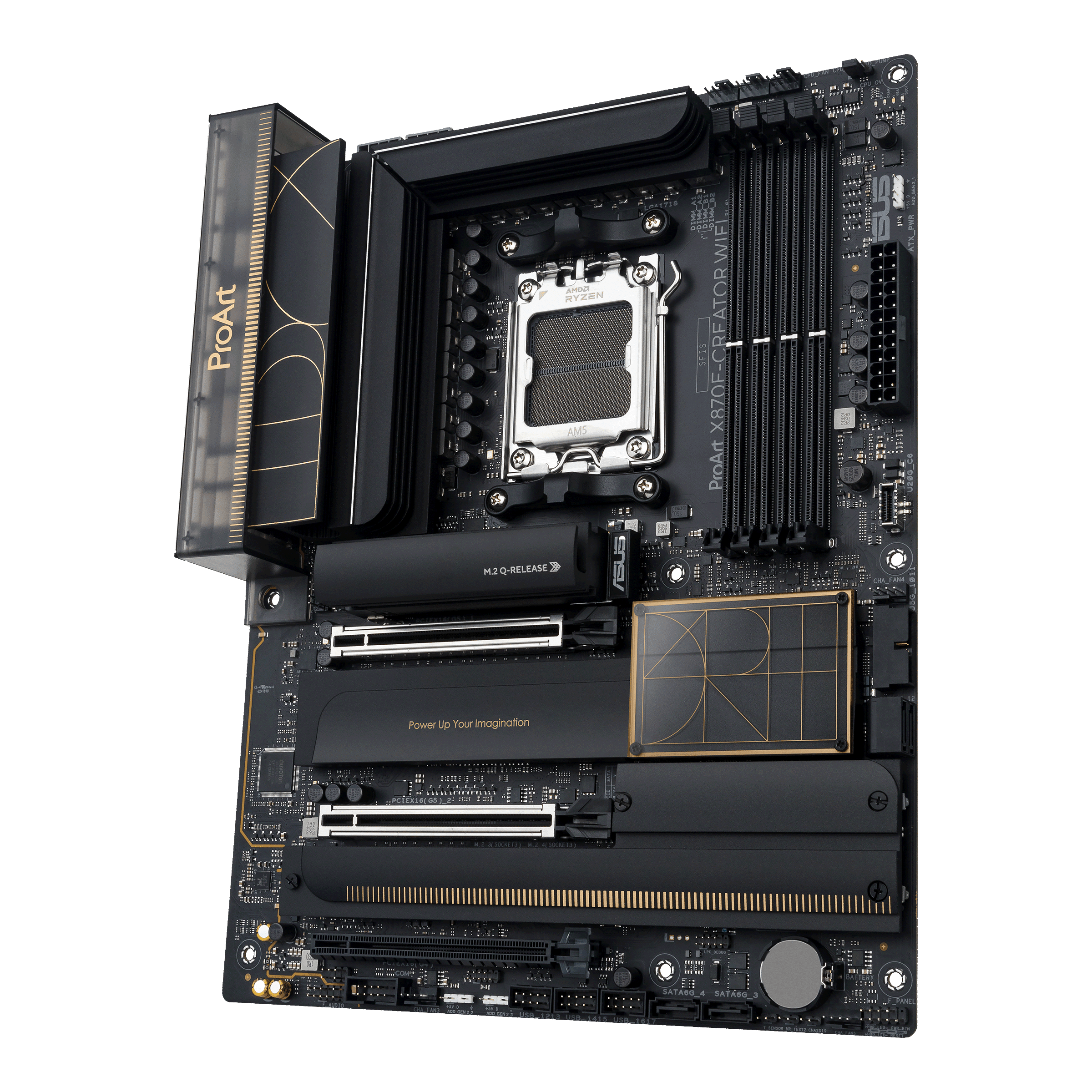

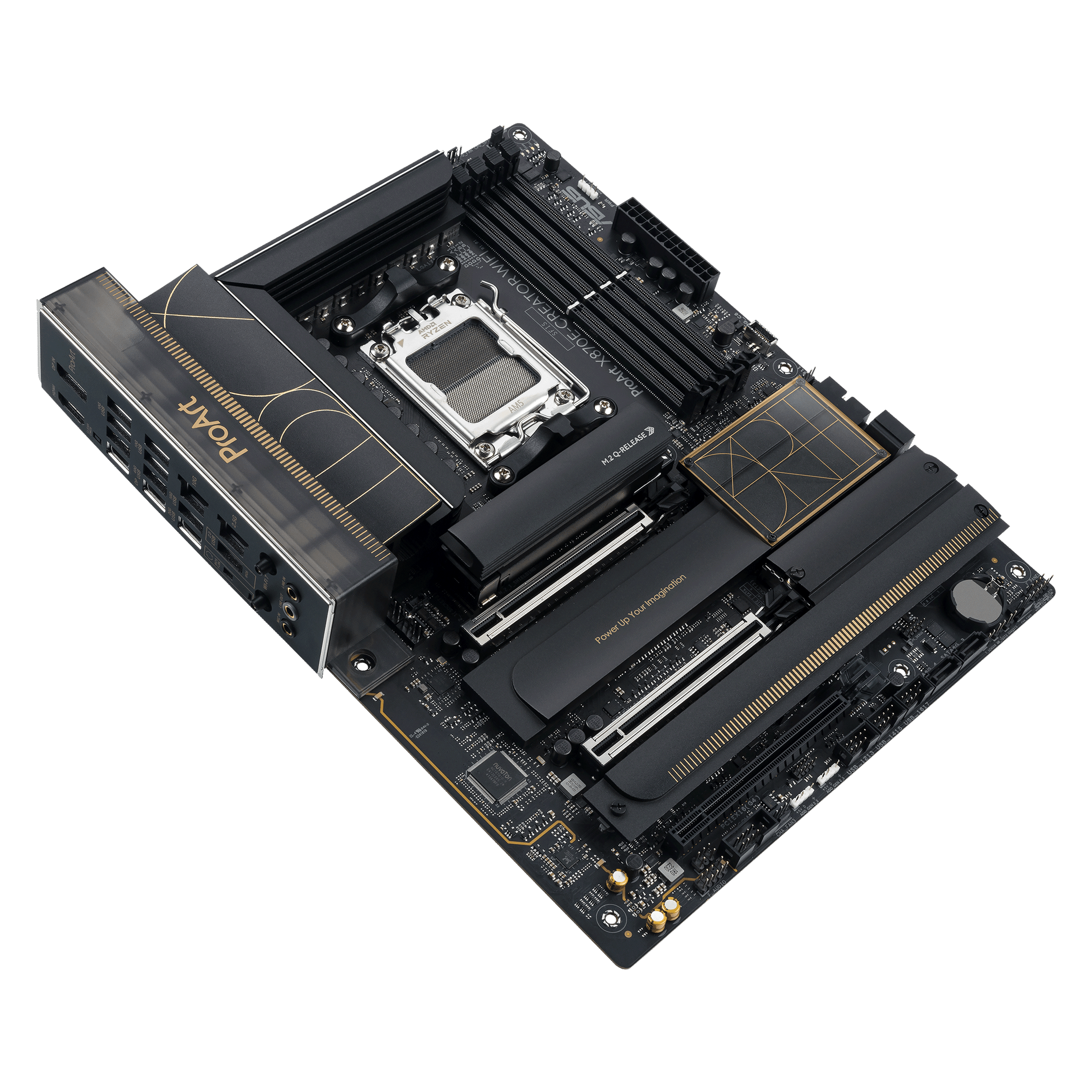

ASUS ProArt X870E-CREATOR WIFI AM5 ATX Motherboard

Export Specification - Copy And Paste Into Your Post

$538.99

Specification

Brand

ASUS

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Chipset

AMD X870E

CPU Socket

Socket AM5

Form Factor

ATX

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Memory Support 8000+MT/s(OC) with Ryzen™ 9000 Series Processors, 8000+MT/s(OC) with Ryzen™ 8000 Series Processors, 8000+MT/s(OC) with Ryzen™ 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM [Supports AMD Extended Profiles for Overclocking (EXPO™), ASUS Enhanced Memory Profile (AEMP)]

LAN

1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet, ASUS LANGuard

Wireless LAN

Wi-Fi 7, 2x2 Wi-Fi 7 (802.11be) [Supports 2.4/5/6GHz frequency band, Supports Wi-Fi 7 320MHz bandwidth (up to 6.5Gbps transfer rate), Bluetooth v5.4

Audio

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

Storage

Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports / AMD Ryzen™ 9000 & 7000 Series Desktop Processors: M.2_1 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode), M.2_2 slot (Key M) type 2242/2260/2280 (supports PCIe 5.0 x4 mode) / AMD Ryzen™ 8000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_2 slot is not supported / AMD X870E Chipset: M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode), M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode), 4 x SATA 6Gb/s ports

Onboard Graphics

1x HDMI, 2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Raid

AMD RAIDXpert2 Technology: Ryzen™ 9000 Series Processors - RAID 0/1/5/10, Ryzen™ 8000 Series Processors - RAID 0/1, Ryzen™ 7000 Series Processors - RAID 0/1/10, X870/B850/X670/B650/A620 chipset - SATA RAID 0/1/10

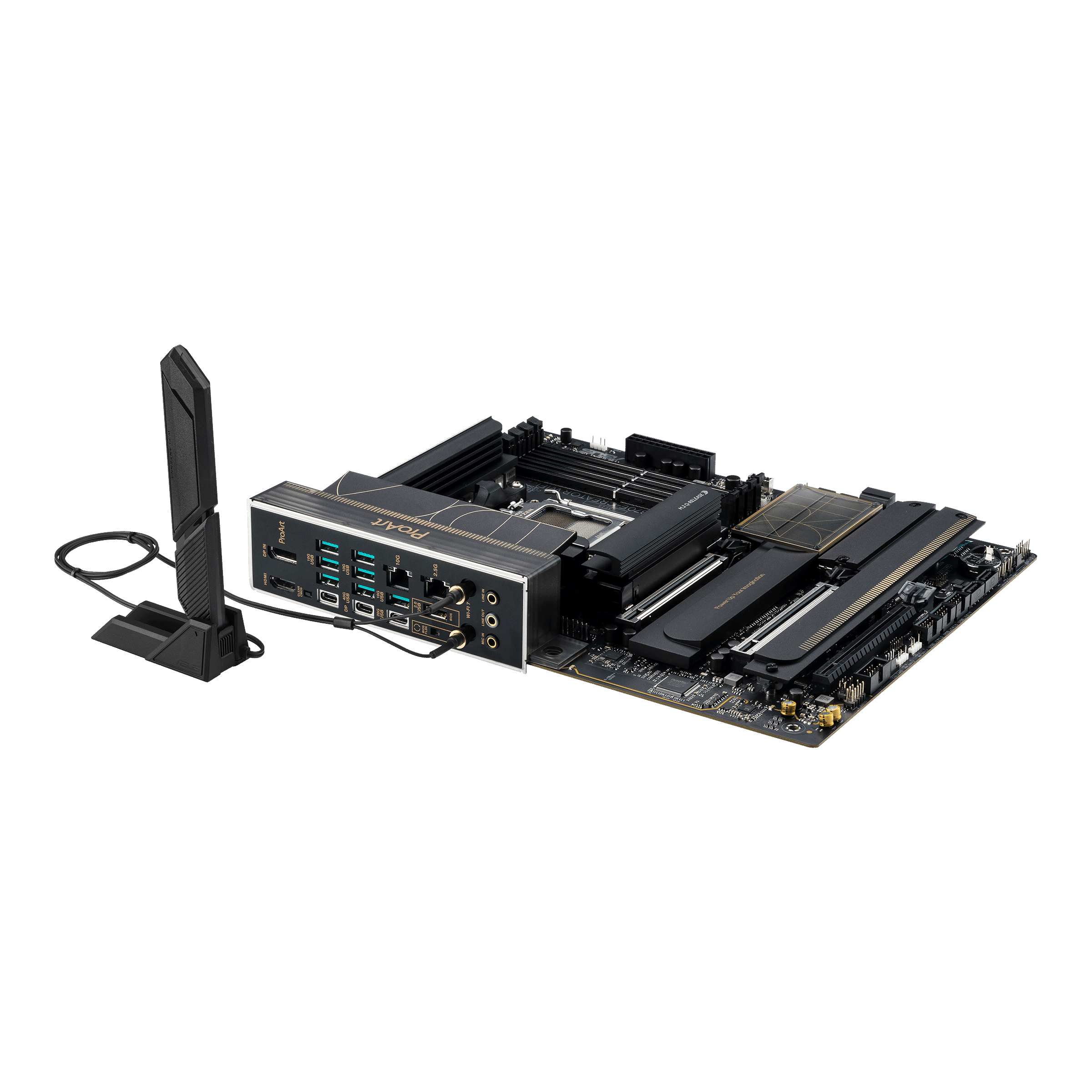

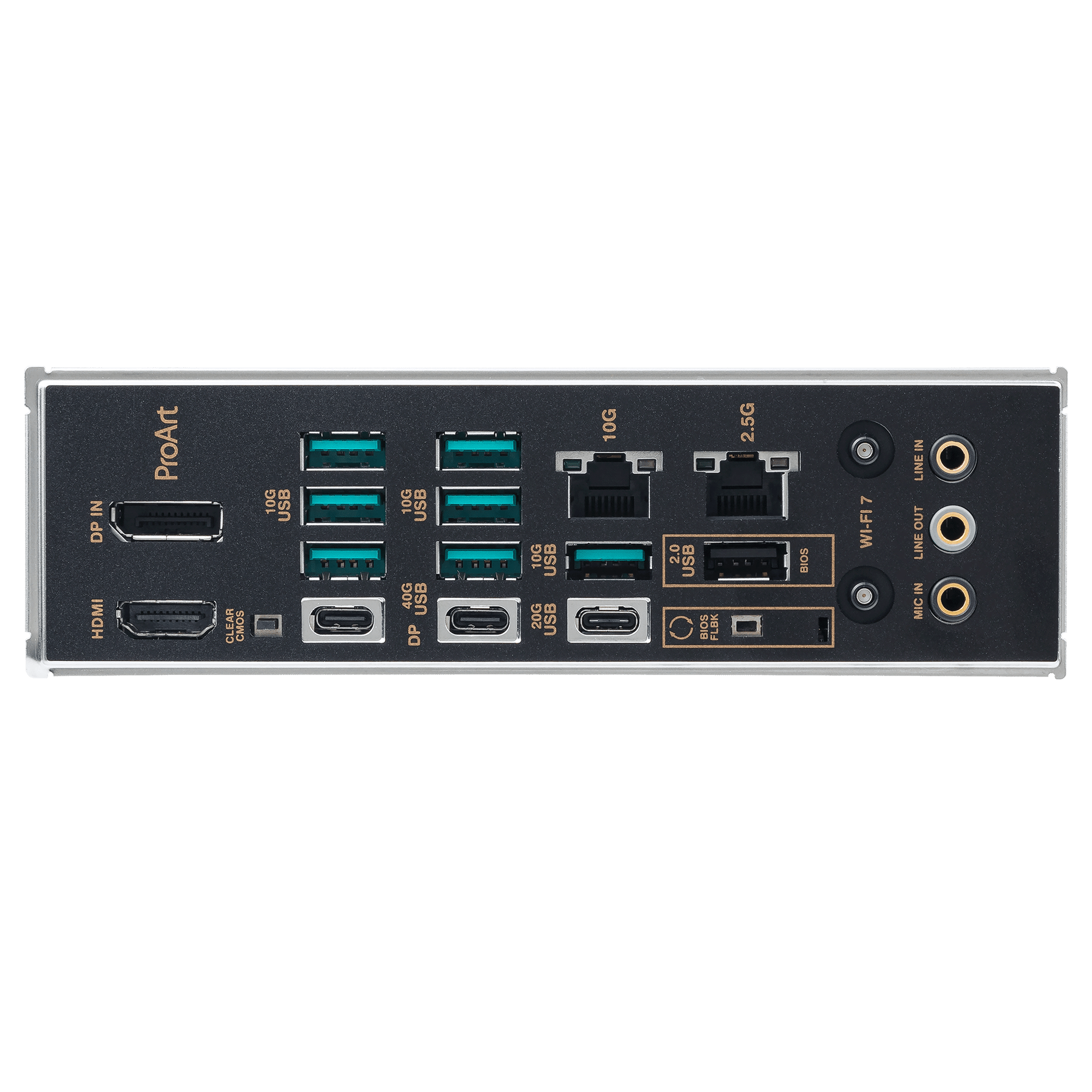

I/O (Rear)

2 x USB4® (40Gbps) port(s) (2 x USB Type-C®), 1 x USB 20Gbps port (1 x USB Type-C®), 7 x USB 10Gbps ports (7 x Type-A), 1 x USB 2.0 port (1 x Type-A), 1 x DisplayPort (Input only), 1 x HDMITM port, 1 x Wi-Fi Module, 1 x Marvell® AQtion 10Gb Ethernet, 1 x Intel® 2.5Gb Ethernet, 3 x Audio jacks, 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors: 2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8 or x8/x4/x4 modes) / AMD Ryzen™ 8700 & 8600 & 8400 Series Desktop Processors: 1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x8, PCIEX16(G5)_2 will be disabled) / AMD Ryzen™ 8500 & 8300 Series Desktop Processors: 1 x PCIe 4.0 x16 slots with Q-Release Slim (1 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEX16(G5)_1 & total bandwidth of x4, PCIEX16(G5)_2 will be disabled), AMD X870E Chipset: 1 x PCIe 4.0 x16 slot (supports x4 mode)

USB (Front)

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/QC4+), 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports

USB (Rear)

2 x USB4® (40Gbps) ports (2 x USB Type-C®), 1 x USB 20Gbps ports (1 x USB Type-C®), 7 x USB 10Gbps ports (7 x Type-A), 1 x USB 2.0 port (1 x Type-A)

Internal Connectors

1 x 4-pin CPU Fan header, 1 x 4-pin CPU OPT Fan header, 1 x 4-pin AIO Pump header, 5 x 4-pin Chassis Fan headers, 1 x 24-pin Main Power connector, 2 x 8-pin +12V CPU Power connector, 4 x M.2 slots (Key M), 4 x SATA 6Gb/s ports, 1 x USB 20Gbps connectors (supports USB Type-C® with up to 30W PD/QC4+), 1 x USB 5Gbps headers support 2 additional USB 5Gbps ports, 3 x USB 2.0 headers support 6 additional USB 2.0 ports, 3 x Addressable Gen2 headers, 1 x Chassis Intrusion header, 1 x COM Port header, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin System Panel header, 1 x Thermal Sensor header

Dimensions

9.60 in. x 12.00 in.

Warranty

Refer to Manufacturer's Warranty

Ready for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Dual USB4® ports, 10 Gb & 2.5 Gb Ethernet, WiFi 7, PCIe 5.0 x16 slot full support for next-gen GPUs, two PCIe® 5.0 and two PCIe 4.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+
AI Overclocking, AI Cooling and AI Networking II, Dynamic OC Switcher, and Core Flex
PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack™, Q-Connector
