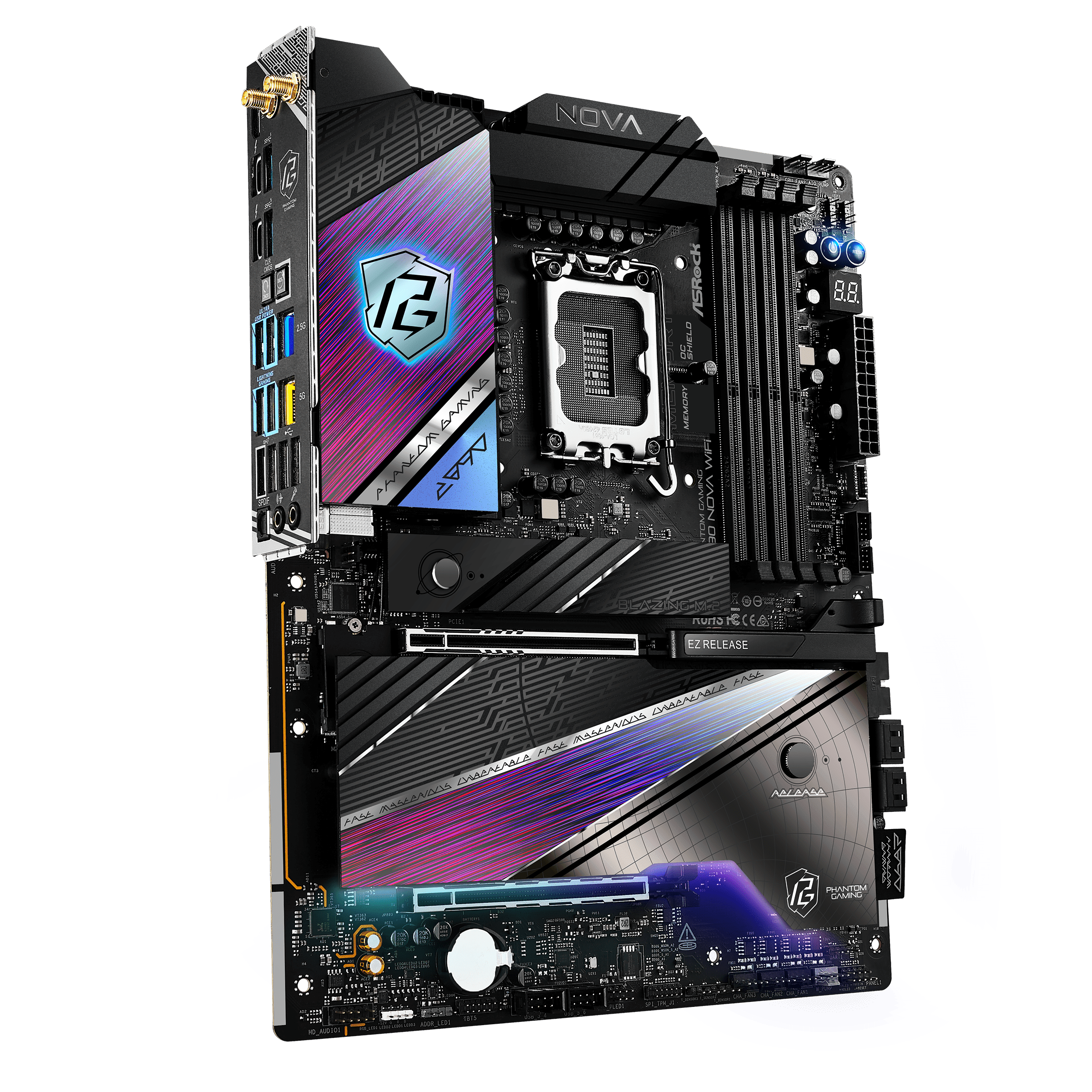

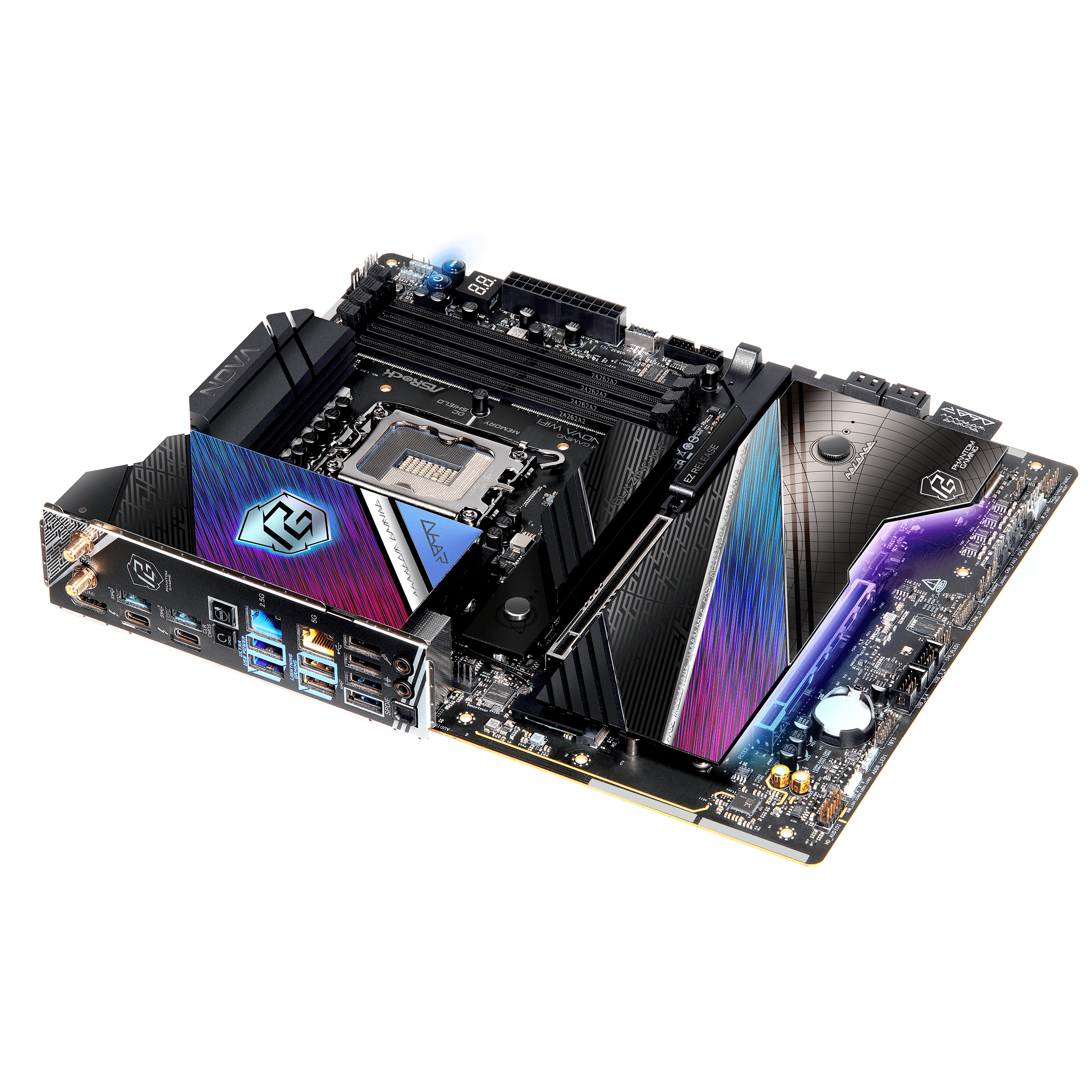

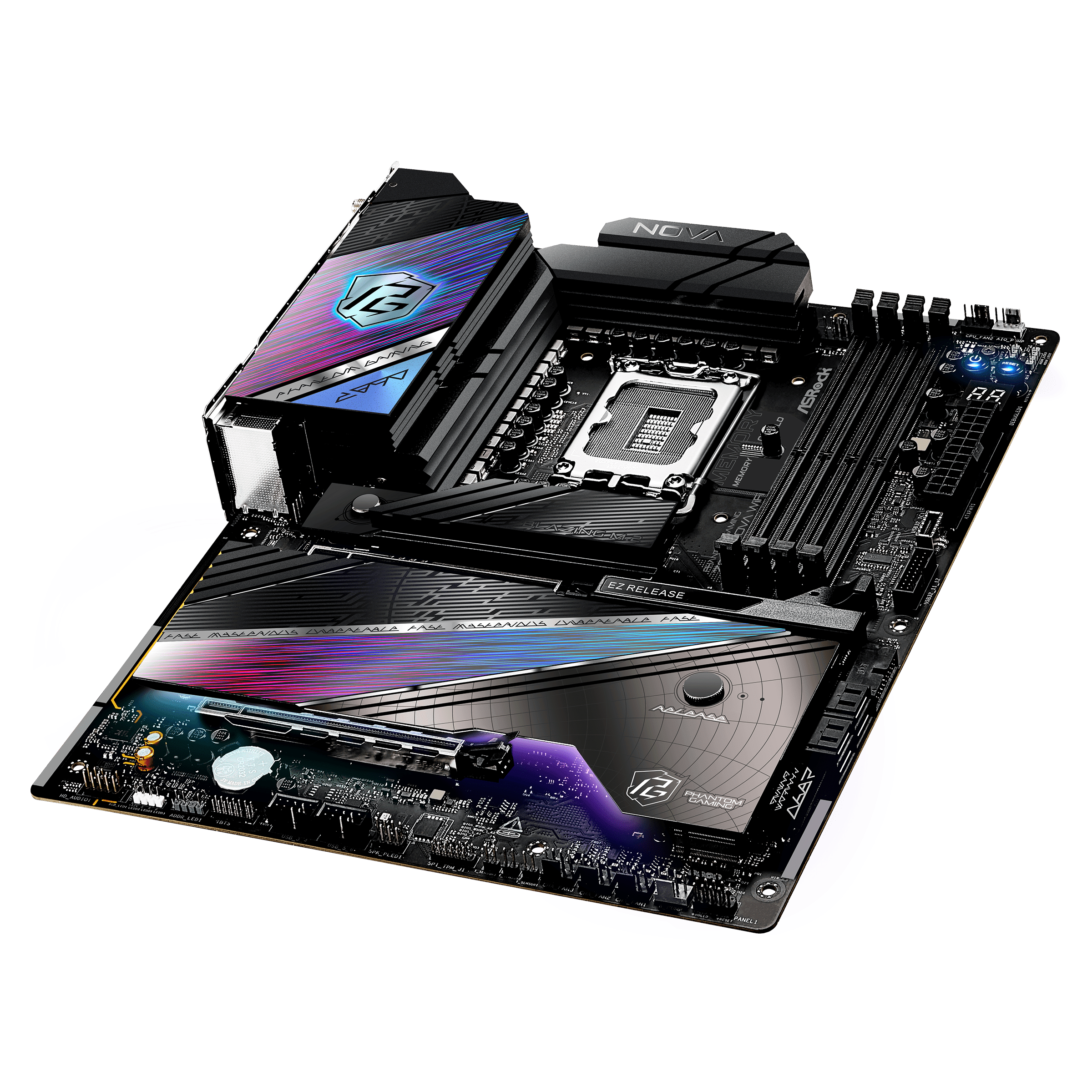

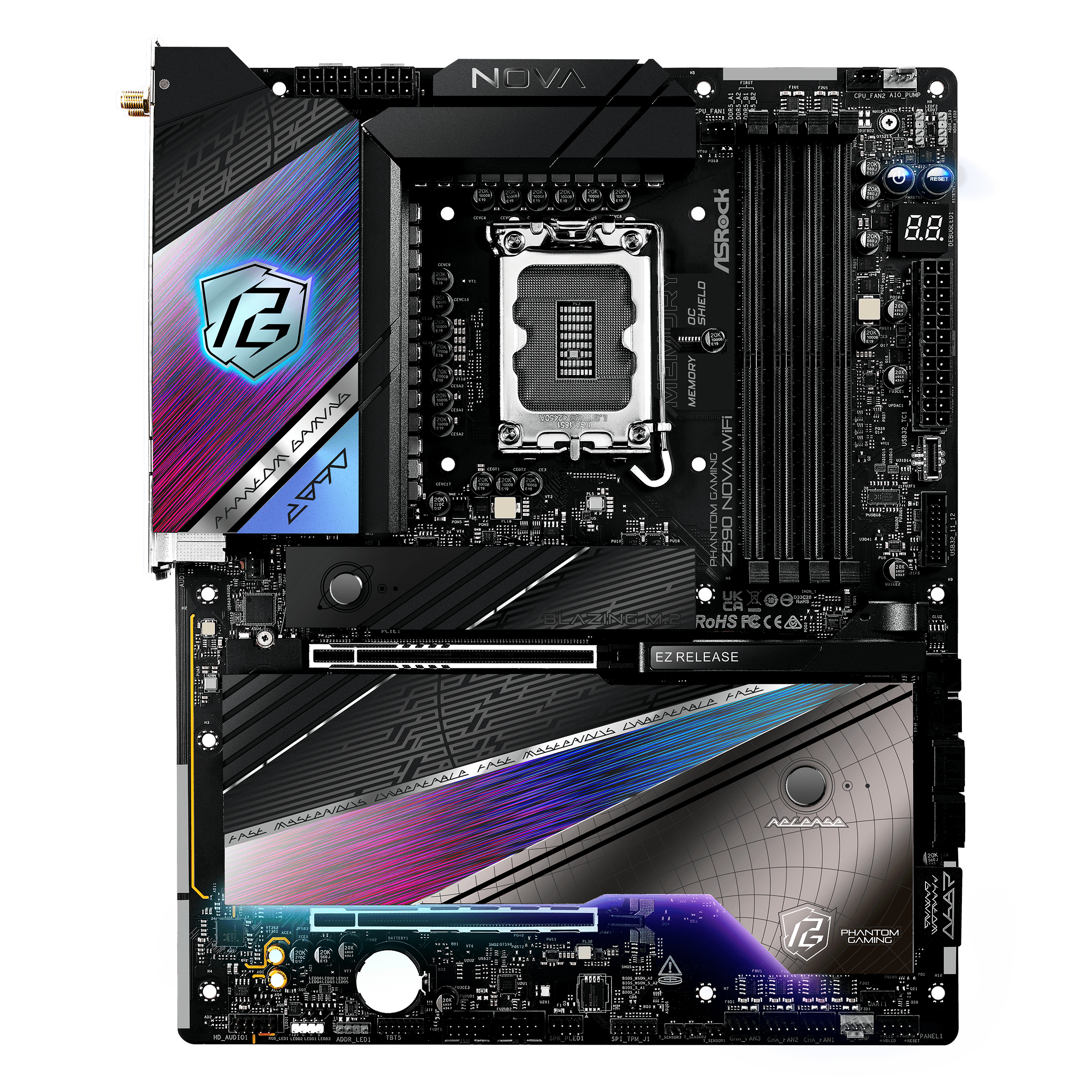

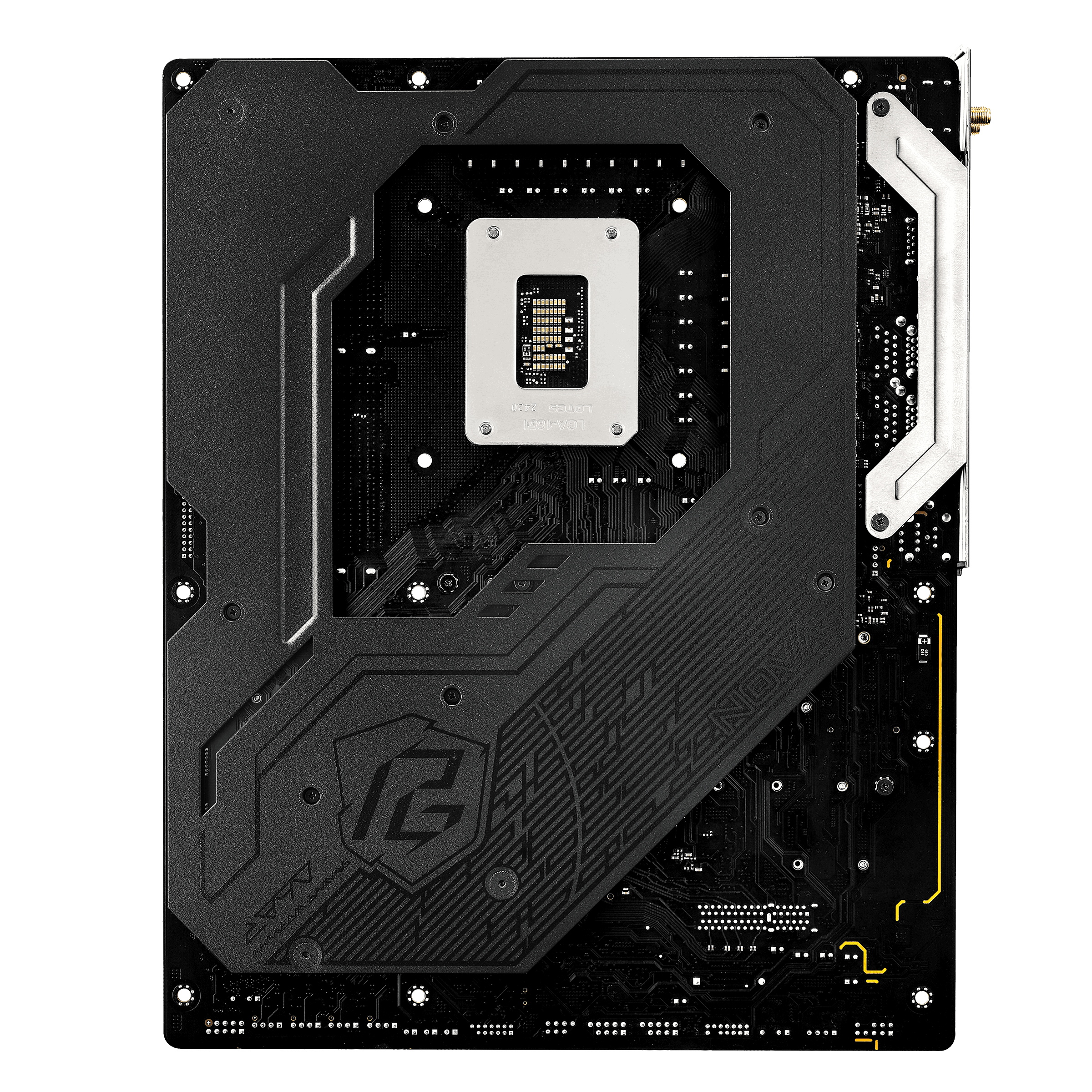

ASRock Phantom Gaming Z890 NOVA WIFI LGA 1851 ATX Gaming Motherboard
ASRock Phantom Gaming Z890 NOVA WIFI LGA 1851 ATX Gaming Motherboard
$332.99
Specification
Brand
ASRock
CPU
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851RL-ILM)
Chipset
Intel Z890
CPU Socket
LGA 1851
Form Factor
ATX
Memory
Dual Channel DDR5 Memory Technology, 4 x DDR5 DIMM Slots, Max. capacity of system memory: 256GB [Supports DDR5 non-ECC, un-buffered memory up to 9600MHz+(OC), Supports Clocked Unbuffered DIMM (CUDIMM), Supports Intel® Extreme Memory Profile (XMP) 3.0x]
BIOS
256Mb AMI UEFI Legal BIOS with GUI support
LAN
1 x 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s (Realtek RTL8126), 1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Killer E3100G) [Supports Killer LAN Software]
Wireless LAN
802.11be 2x2 Wi-Fi 7 Module [Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz* frequency band, Supports 320MHz channel bandwidth with 6GHz frequency band], 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology [Supports Bluetooth 5.4, MU-MIMO]
Audio
7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Individual PCB Layers for R/L Audio Channel, Nahimic Audio
Storage
CPU: 1 x Blazing M.2 Socket (M2_1, Key M) [Supports type 2280 PCIe Gen5x4 (128 Gb/s) mode], 1 x Hyper M.2 Socket (M2_2, Key M) [Supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) model] / Chipset: 1 x Hyper M.2 Socket (M2_3, Key M) [Supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe] / Gen4x4 (64 Gb/s) modes: 1 x Hyper M.2 Socket (M2_4, Key M) [Supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode], 1 x Hyper M.2 Socket (M2_5, Key M) [Supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode], 1 x Hyper M.2 Socket (M2_6, Key M) [Supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode], 4 x SATA3 6.0 Gb/s Connectors
Onboard Graphics
Intel® Xe LPG Graphics Architecture, 1 x HDMI 2.1 TMDS/FRL 8G Compatible (Supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz), 2 x Intel® Thunderbolt™ 4 (Support HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz)
Raid
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices / Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

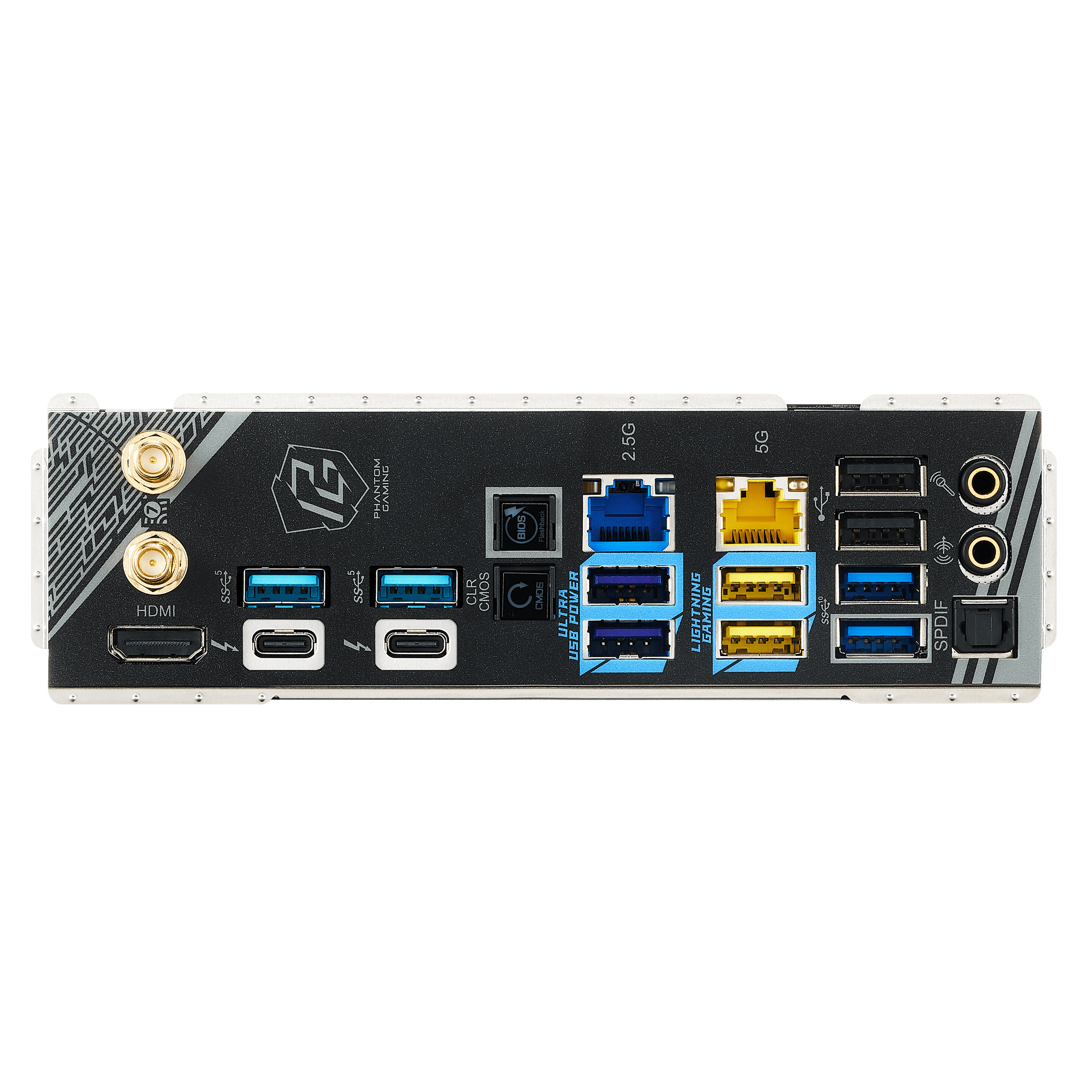

I/O (Rear)
2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x Thunderbolt™ 4/USB4 Type-C Ports (40 Gb/s), 4 x USB 3.2 Gen2 Type-A Ports (10 Gb/s), 4 x USB 3.2 Gen1 Ports, 2 x USB 2.0 Ports, 2 x RJ-45 LAN Ports, 1 x Clear CMOS Button, 1 x BIOS Flashback Button, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack)
Slots
CPU: 1 x PCIe 5.0 x16 Slot (PCIE1)(Supports x16 mode) / Chipset: 1 x PCIe 4.0 x16 Slot (PCIE2) (Supports x4 mode), 1 x M.2 Socket (Key E) (Supports type 2230 WiFi/BT PCIe WiFi module)
USB
CPU: 2 x Thunderbolt™ 4/USB4 Type-C (Rear) / Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front), 4 x USB 3.2 Gen2 Type-A (Rear), 8 x USB 3.2 Gen1 (4 Rear, 4 Front), 6 x USB 2.0 (2 Rear, 4 Front)
Internal Connectors
3 x Thermistor Cable Headers, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control), 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15µ Gold Audio Connector), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s), 1 x Dr. Debug with LED, 1 x Power Button with LED, 1 x Reset Button with LED
EAN
4710483949708
Dimensions
9.60 in. x 12.00 in.
Warranty
Refer to Manufacturer's Warranty
Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
20+1+2+1+1 Power Phase, 110A SPS for VCore
Supports Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF Capacitance, M.2 Expansion Card
