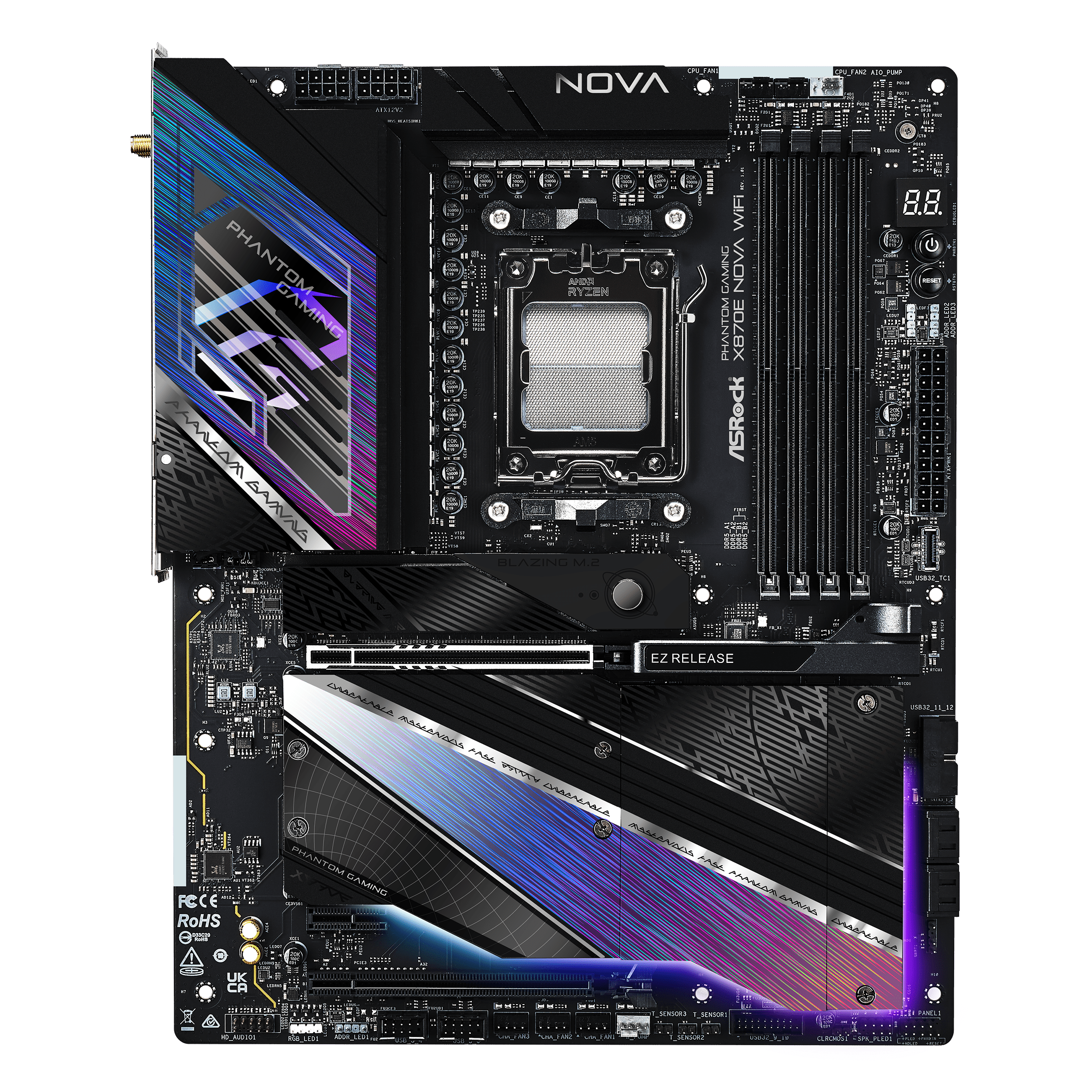

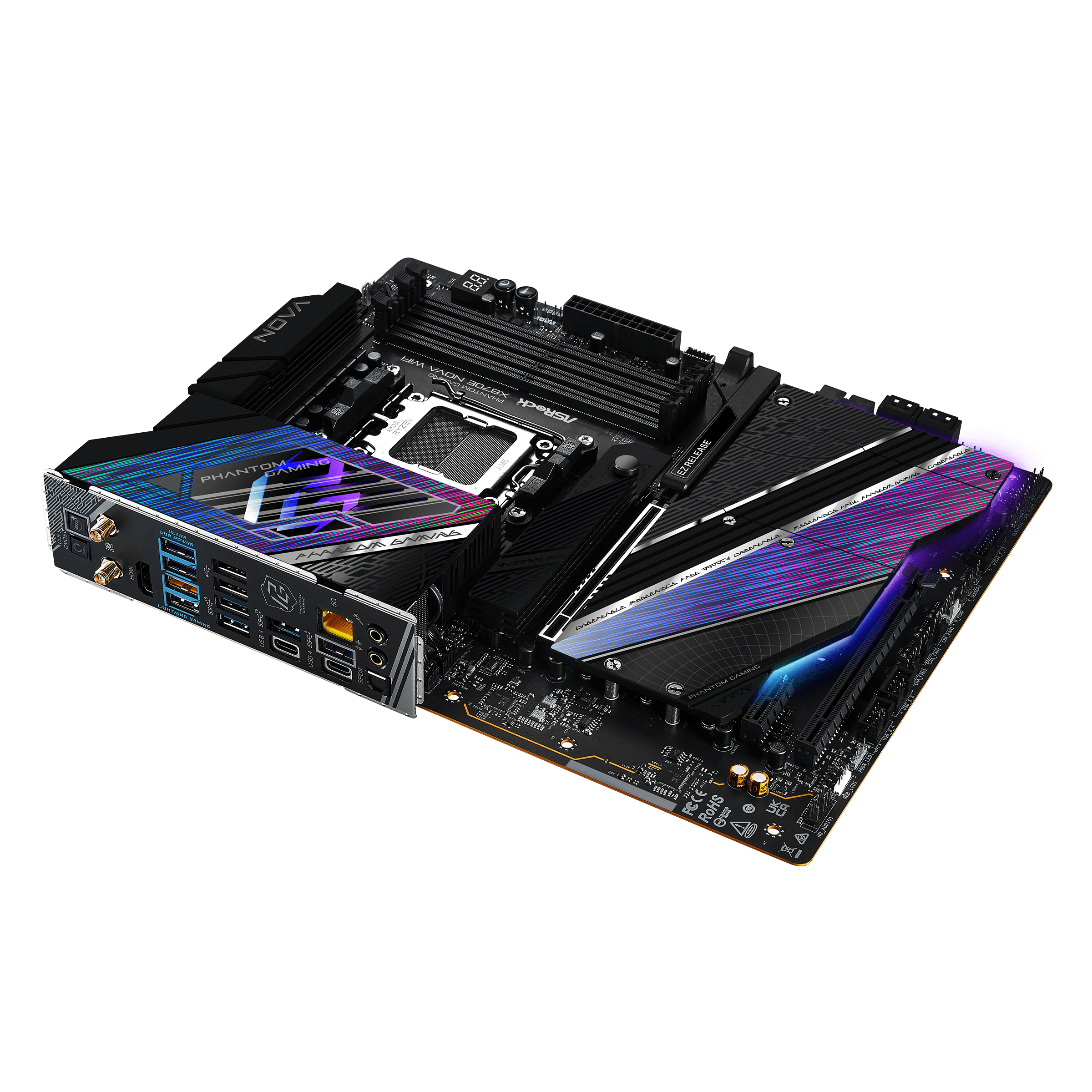

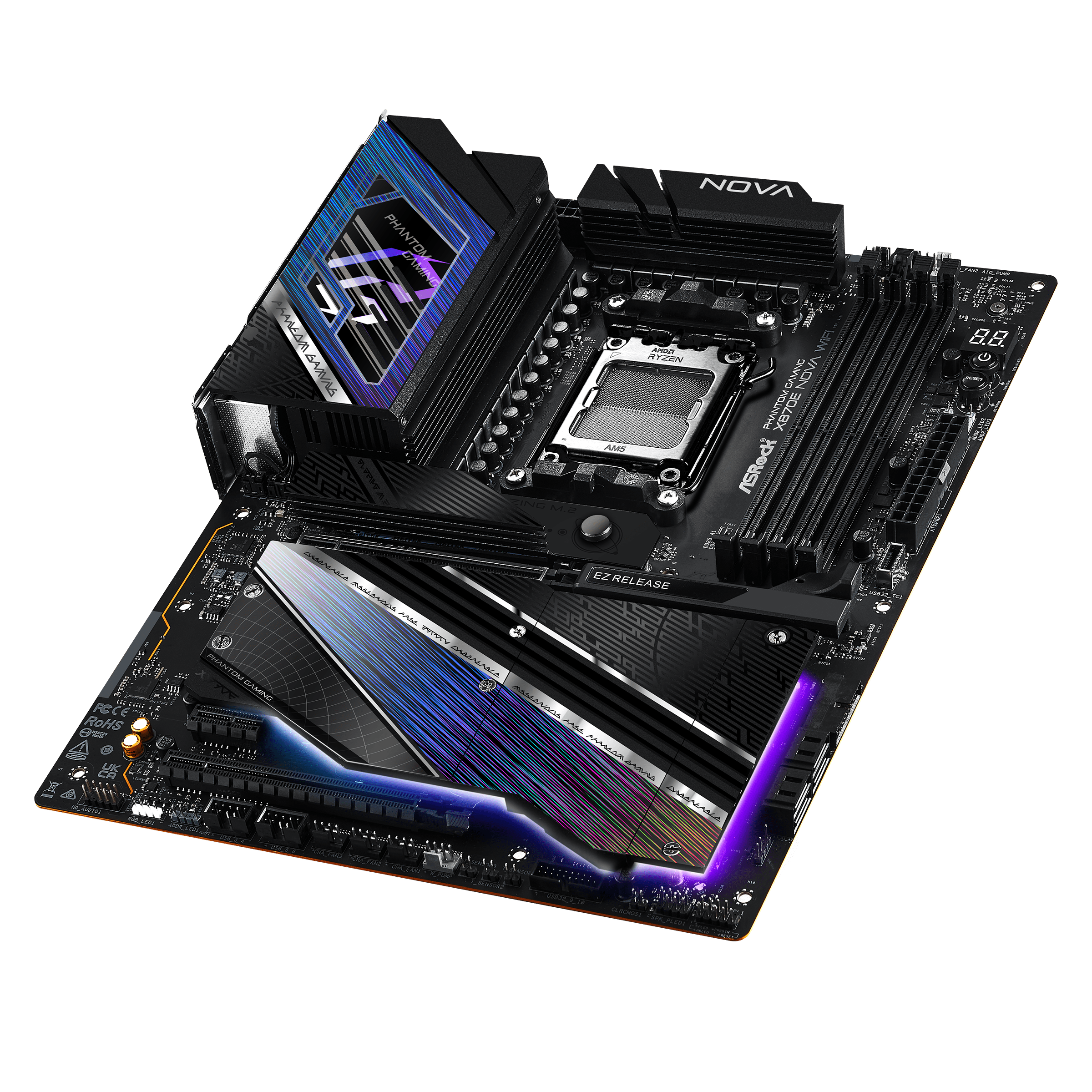

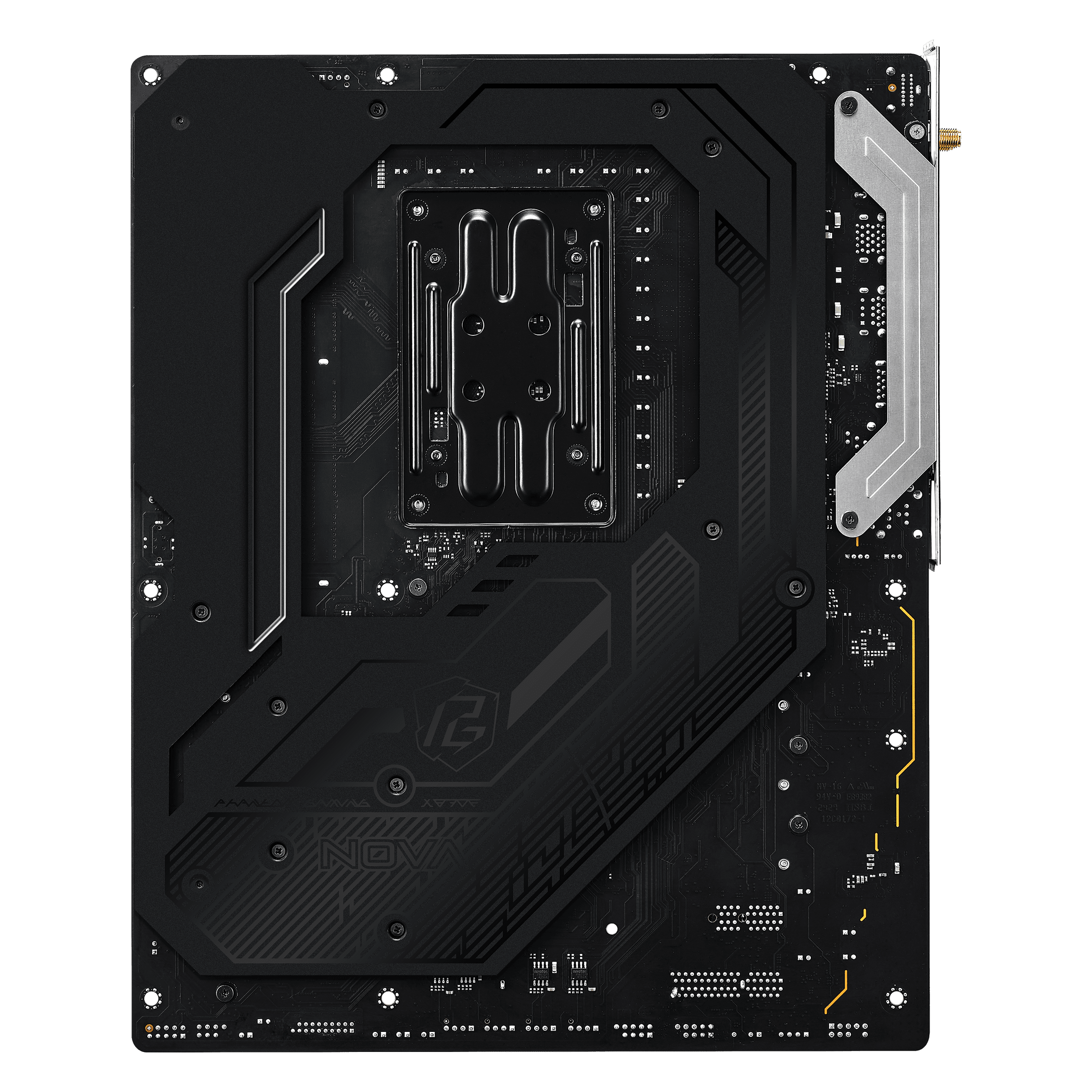

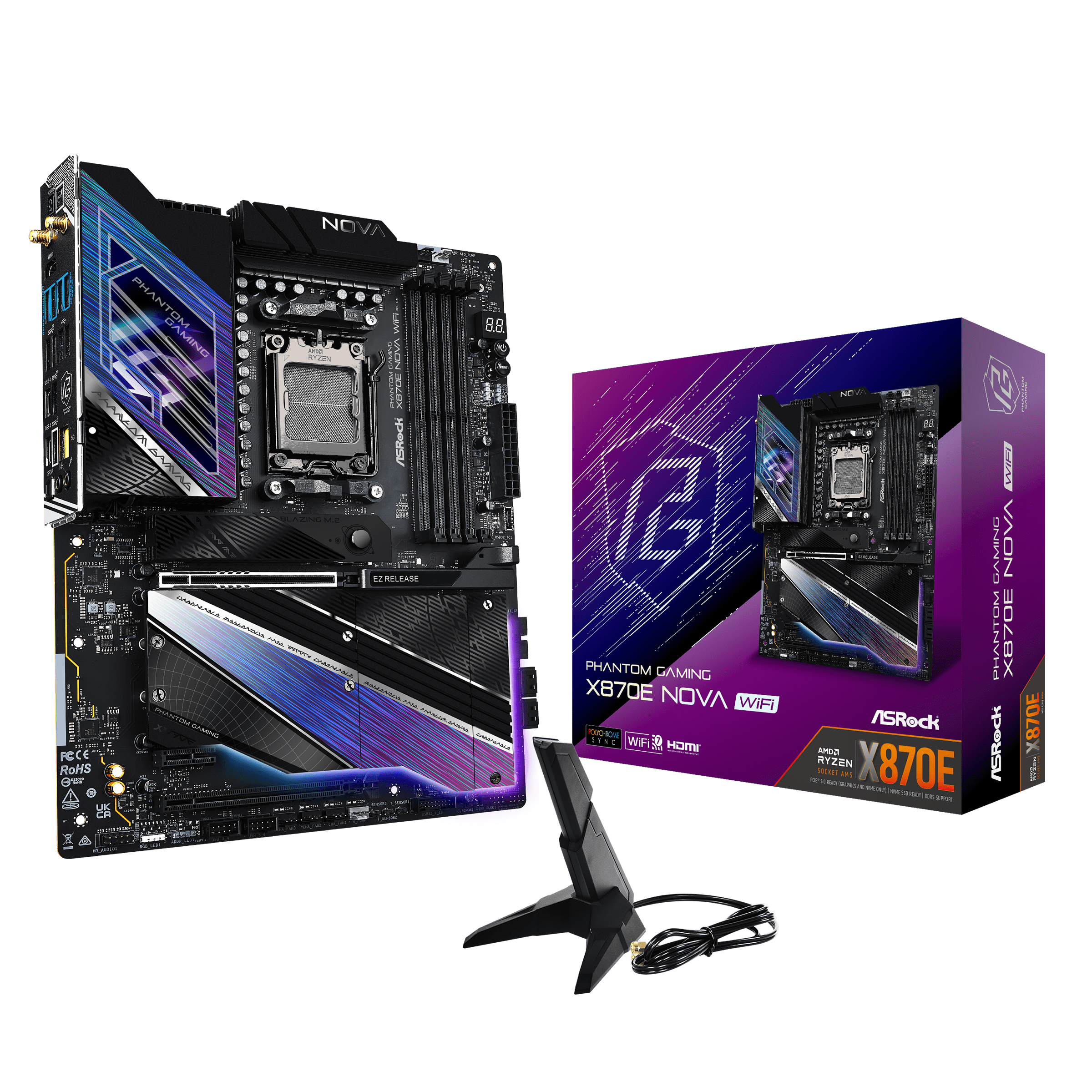

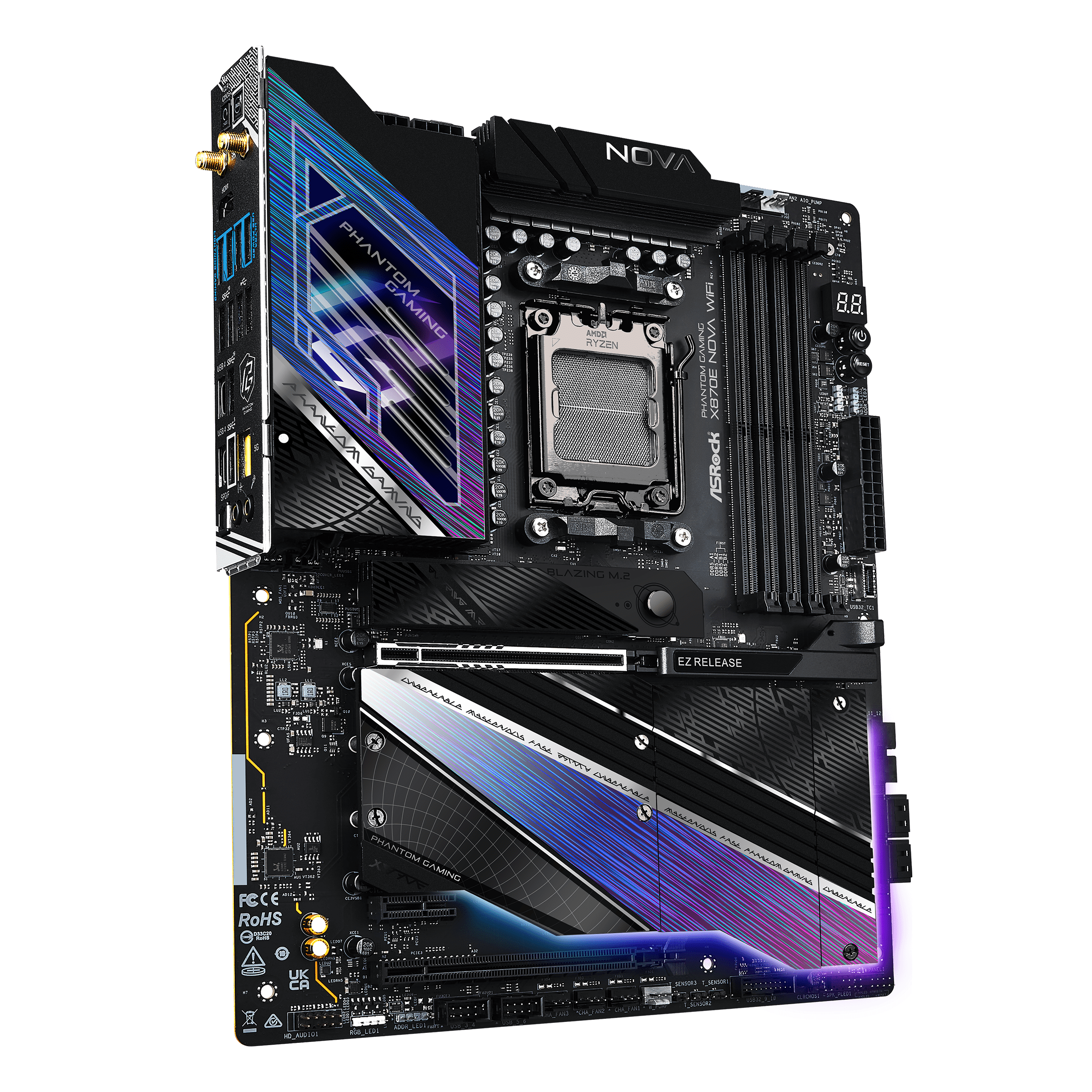

ASRock Phantom Gaming X870E NOVA WIFI AM5 ATX Gaming Motherboard

Export Specification - Copy And Paste Into Your Post

$349.95

Specification

Brand

ASRock

CPU

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Chipset

AMD X870E

CPU Socket

Socket AM5

Form Factor

ATX

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB, Supports DDR5 ECC/non-ECC, un-buffered memory up to 8200+(OC) [Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules]

BIOS

256Mb AMI UEFI Legal BIOS with GUI support

LAN

5 Gigabit LAN 10/100/1000/2500/5000 Mb/s, Realtek RTL8126

Wireless LAN

802.11be 2x2 Wi-Fi 7 Module [Supports IEEE 802.11a/b/g/n/ac/ax/axe/be, Supports 2.4GHz/5GHz/6GHz* frequency band, Supports 160MHz channel bandwidth with 6GHz frequency band], 1 antenna to support 2 (Transmit) x 2 (Receive) diversity technology [Supports Bluetooth 5.4, MU-MIMO]

Audio

7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec), Individual PCB Layers for R/L Audio Channel, Nahimic Audio

Storage

1 x Blazing M.2 Socket (M2_1, Key M)/[Supports type 2280 PCIe Gen5x4 (128 Gb/s) mode], 1 x Hyper M.2 Socket (M2_2, Key M)/[Supports type 2280 PCIe Gen4x4 (64 Gb/s) mode], 1 x Hyper M.2 Socket (M2_3, Key M)/[Supports type 2280 PCIe Gen4x4 (64 Gb/s) mode], 1 x Hyper M.2 Socket (M2_4, Key M)/[Supports type 2280 PCIe Gen4x4 (64 Gb/s) mode], 1 x M.2 Socket (M2_5, Key M)/[Supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes], 2 x SATA3 6.0 Gb/s Connectors

Onboard Graphics

Integrated AMD RDNA™ graphics (Actual support may vary by CPU), 1 x HDMI 2.1 TMDS/FRL 8G Compatible (Supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz), 2 x USB4 (Supports HDCP 2.3 and max. resolution up to 8K 30Hz)

Raid

Supports RAID 0 and RAID 1 for SATA storage devices / Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

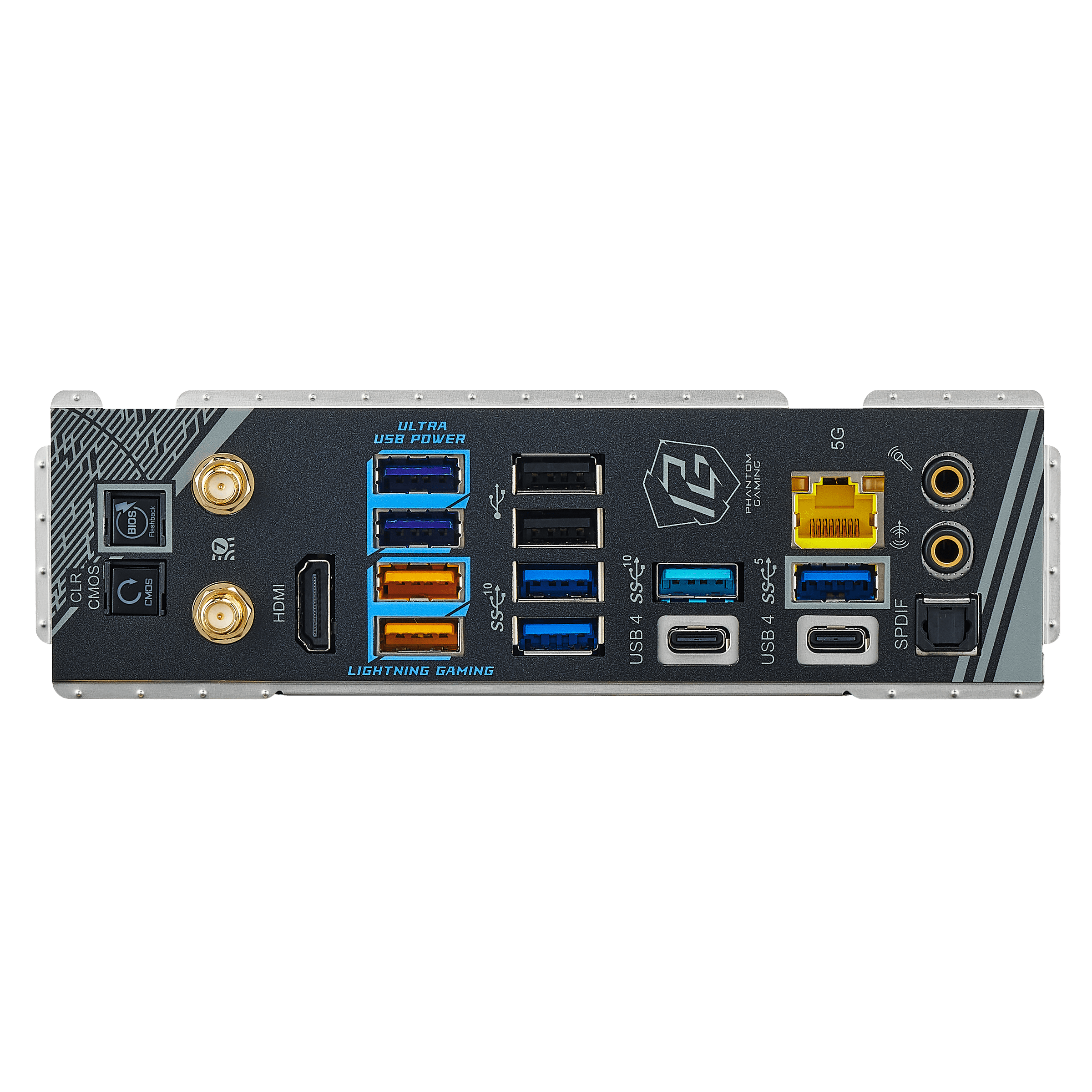

I/O (Rear)

2 x Antenna Ports, 1 x HDMI Port, 1 x Optical SPDIF Out Port, 2 x USB4 Type-C Ports (40 Gb/s), 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (USB32_12 are Lightning Gaming Ports), 3 x USB 3.2 Gen1 Type-A Ports (USB32_34 supports Ultra USB Power), 2 x USB 2.0 Ports, 1 x RJ-45 LAN Port, 1 x Clear CMOS Button, 1 x BIOS Flashback Button, 1 x Line Out Jack (Gold Audio Jack), 1 x Microphone Input Jack (Gold Audio Jack)

Slots

CPU: 1 x PCIe 5.0 x16 Slot (PCIE1)(Supports x16 mode) / Chipset: 1 x PCIe 3.0 x1 Slot (PCIE2)(Supports x1 mode), 1 x PCIe 3.0 x16 Slot (PCIE3)(Supports x2 mode), 1 x Vertical M.2 Socket (Key E)(Supports type 2230 WiFi/BT PCIe WiFi module)

USB

CPU: 2 x USB4 Type-C (Rear), 2 x USB 3.2 Gen2 Type-A (Rear (USB32_1 and USB32_7)) / Chipset: 1 x USB 3.2 Gen2x2 Type-C (Front), 3 x USB 3.2 Gen2 Type-A (Rear (USB32_2 and USB32_56)), 7 x USB 3.2 Gen1 Type-A (3 Rear, 4 Front), 6 x USB 2.0 (2 Rear, 4 Front)

Internal Connectors

3 x Thermistor Cable Headers, 1 x Power LED and Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 2 x CPU Fan Connector (4-pin) (Smart Fan Speed Control), 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control), 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x Water Pump Fan Connector (4-pin) (Smart Fan Speed Control), 1 x 24 pin ATX Power Connector (Hi-Density Power Connector), 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector), 1 x Front Panel Audio Connector (15µ Gold Audio Connector), 2 x USB 2.0 Headers (Support 4 USB 2.0 ports), 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports), 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s), 1 x Dr. Debug with LED, 1 x Power Button with LED, 1 x Reset Button with LED

Dimensions

9.61 in. x 12.00 in.

Warranty

Refer to Manufacturer's Warranty

Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
20+2+1 Phase Power Design, 110A SPS for VCore+SOC
4 x DDR5 DIMMs (Supports Dual Channel, up to 8200+ (OC))
Graphics Output Options: 2 USB4 Type-C, 1 HDMI
Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
1 Blazing M.2 (PCIe Gen5x4) and 3 Hyper M.2 (PCIe Gen4x4)
